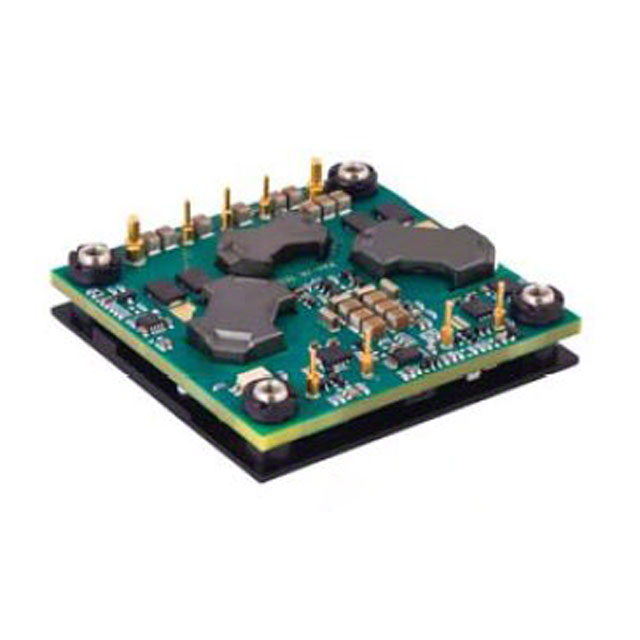

PAH-28/12.5-D24PB-C

LTB

Murata Power Solutions Inc.

DC DC CONVERTER 28V 350W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PAH-28/12.5-D24PB-C

LTB

Murata Power Solutions Inc.

DC DC CONVERTER 28V 350W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PAH-28/12.5-D24PB-C

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	12.5 A
Efficiency	92.5 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	9-DIP Module, 1/2 Brick
Power (Watts)	350 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	58.4 mm
Size / Dimension [y]	2.3 "
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	28 V

PAH-28 Series

Part	Voltage - Output 1	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Features	Voltage - Input (Min) [Min]	Package / Case	Applications	Number of Outputs	Efficiency	Control Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max) [Max]	Voltage - Isolation
Murata Power Solutions Inc. PAH-28/12.5-D48NB-C	28 V	350 W	85 °C	-40 °C	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	36 V	9-DIP Module 1/2 Brick	ITE (Commercial)	1	93 %	Active Low Enable	12.7 mm	2.4 in	61 mm	0.5 in	58.4 mm	2.3 "	75 V	Through Hole	12.5 A	2250 VDC
Murata Power Solutions Inc. PAH-28/12.5-D24PB-C	28 V	350 W	85 °C	-40 °C	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	18 V	9-DIP Module 1/2 Brick	ITE (Commercial)	1	92.5 %	Active High Enable	12.7 mm	2.4 in	61 mm	0.5 in	58.4 mm	2.3 "	36 V	Through Hole	12.5 A	2250 VDC
Murata Power Solutions Inc. PAH-28/12.5-D48PB-C	28 V	350 W	85 °C	-40 °C	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	36 V	9-DIP Module 1/2 Brick	ITE (Commercial)	1	93 %	Active High Enable	12.7 mm	2.4 in	61 mm	0.5 in	58.4 mm	2.3 "	75 V	Through Hole	12.5 A	2250 VDC
Murata Power Solutions Inc. PAH-28/12.5-D48NB1-C	28 V	350 W	85 °C	-40 °C	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	36 V	9-DIP Module 1/2 Brick	ITE (Commercial)	1	93 %	Active Low Enable	12.7 mm	2.4 in	61 mm	0.5 in	58.4 mm	2.3 "	75 V	Through Hole	12.5 A	2250 VDC
Murata Power Solutions Inc. PAH-28/16-D48N-C	28 V	450 W	85 °C	-40 °C	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	36 V	9-DIP Module 1/2 Brick	ITE (Commercial)	1	93.5 %	Active Low Enable	12.7 mm	2.4 in	61 mm	0.5 in	58.4 mm	2.3 "	75 V	Through Hole	16 A	2250 VDC
Murata Power Solutions Inc. PAH-28/12.5-D24NB-C	28 V	350 W	85 °C	-40 °C	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	18 V	9-DIP Module 1/2 Brick	ITE (Commercial)	1	92.5 %	Active Low Enable	12.7 mm	2.4 in	61 mm	0.5 in	58.4 mm	2.3 "	36 V	Through Hole	12.5 A	2250 VDC
Murata Power Solutions Inc. PAH-28/16-D48NB-C	28 V	450 W	85 °C	-40 °C	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	36 V	9-DIP Module 1/2 Brick	ITE (Commercial)	1	93.5 %	Active Low Enable	12.7 mm	2.4 in	61 mm	0.5 in	58.4 mm	2.3 "	75 V	Through Hole	16 A	2250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 86.11
		5	$ 85.40
		10	$ 85.28
		25	$ 83.51
		50	$ 81.01
		100	$ 75.66

Description

General part information

PAH-28 Series

Isolated Module DC DC Converter 1 Output 28V 12.5A 18V - 36V Input
