GS06E-11P1J

Obsolete

MEAN WELL USA Inc.

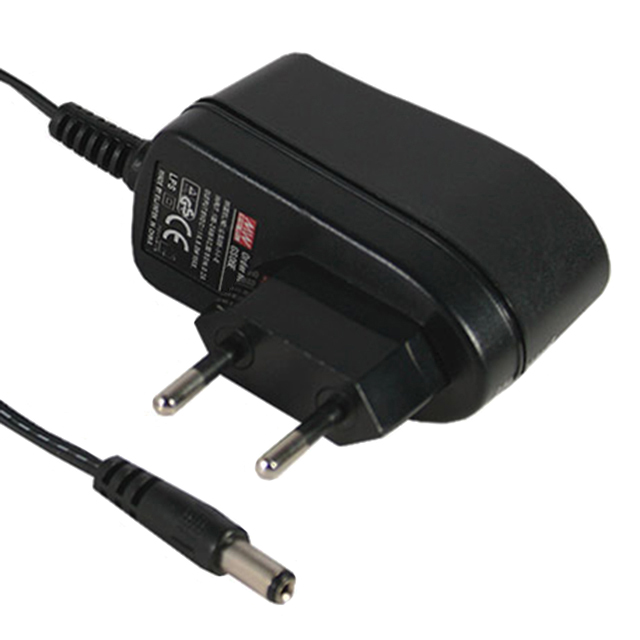

AC/DC WALL MOUNT ADAPTER 7.5V 6W

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

AC/DC WALL MOUNT ADAPTER 7.5V 6W

Technical Specifications

Parameters and characteristics for this part

Specification	GS06E-11P1J

Approval Agency	CE, GS
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	800 mA
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	Europe
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	7.5 V

Part	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Form	Power (Watts)	Efficiency	No Load Power Consumption [Max]	Input Connector	Input Type	Output Connector	Output Connector [diameter]	Output Connector [z]	Approval Agency	Region Utilized	Voltage - Output	Polarization	Current - Output (Max) [Max]	Cord Length
MEAN WELL USA Inc. GS06E-11P1J	1.2 m	47.2 in	90 VAC	264 VAC	Wall Mount (Class II)	6 W	Level VI	75 mW	CEE 7/16	Fixed Blade	Barrel Plug	2.1 mm 5.5 mm	11 mm	CE GS	Europe	7.5 V	Positive Center	800 mA
MEAN WELL USA Inc. GS06E-3P1J		1.8 m	90 VAC	264 VAC	Wall Mount (Class II)	6 W	Level VI	75 mW	CEE 7/16	Fixed Blade	Barrel Plug	2.1 mm 5.5 mm	11 mm	CE GS	Europe	12 V	Positive Center	500 mA	70.9 in
MEAN WELL USA Inc. GS06E-6P1J		1.8 m	90 VAC	264 VAC	Wall Mount (Class II)	6 W	Level VI	75 mW	CEE 7/16	Fixed Blade	Barrel Plug	2.1 mm 5.5 mm	11 mm	CE GS	Europe	24 V	Positive Center	250 mA	70.9 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.73

General part information

7.5V 6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
