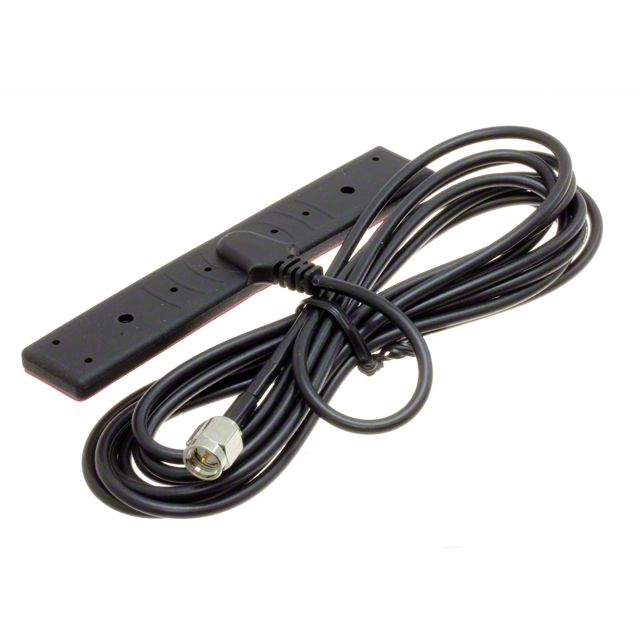

ANT-2/5-HDP-2000-SMA
ActiveTE Connectivity Linx
RF ANT 2.4GHZ/5.42GHZ FLAT CTR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-2/5-HDP-2000-SMA |
|---|---|
| Antenna Type | Flat Bar |
| Applications | U-NII, 802.15.4, Zigbee™, Bluetooth, 802.11, Wi-Fi, Thread |
| Features | Cable - 2m |
| Frequency (Center/Band) | 5.8 GHz, 2.5 GHz, 5 GHz, 5.7 GHz, 2.4 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.88 GHz, 2.5 GHz, 5.72 GHz |
| Frequency Range [Min] | 5.72 GHz, 2.4 GHz, 5.12 GHz |
| Gain | 1.5 dBic, 4 dBi |
| Height (Max) [Max] | 0.244 " |
| Height (Max) [Max] | 6.2 mm |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| VSWR | 1.9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 16.28 | |
| 10 | $ 12.94 | |||
| 25 | $ 11.27 | |||
| 100 | $ 9.61 | |||
| 250 | $ 9.31 | |||
Description
General part information
ANT-2 Series
2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz Bluetooth, Thread, Wi-Fi, Zigbee™, 802.15.4, 802.11, U-NII Flat Bar RF Antenna 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz 4dBi, 1.5dBi, 1.5dBi SMA Male Adhesive
