MPM3820GQV-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC DC CONVERTER 0.6-6V
Deep-Dive with AI
Search across all available documentation for this part.
MPM3820GQV-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC DC CONVERTER 0.6-6V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM3820GQV-Z |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 2 A |
| Features | OTP, UVLO, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

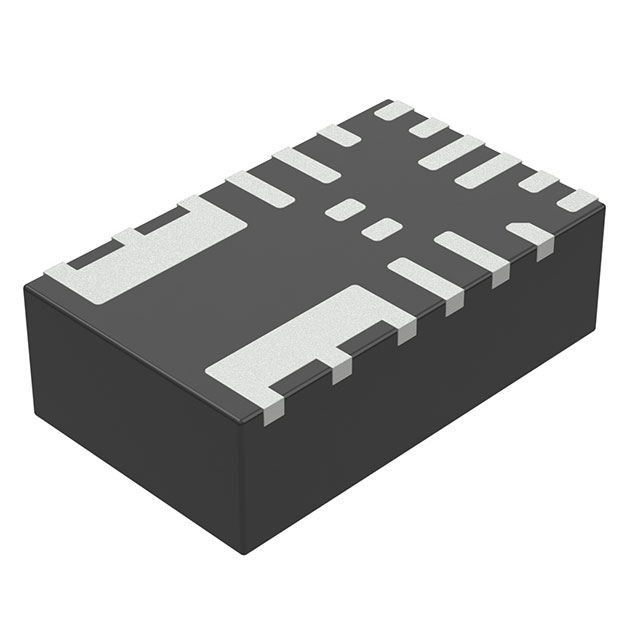

| Package / Case | 20-PowerLFQFN Module |
| Size / Dimension [x] | 0.2 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.12 " |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [z] | 1.6 mm |
| Size / Dimension [z] | 0.06 " |
| Supplier Device Package | 20-QFN (3x5) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output 1 [Max] | 6 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.63 | |
| 10 | $ 2.32 | |||
| 25 | $ 1.98 | |||
| 100 | $ 1.60 | |||
| 250 | $ 1.41 | |||
| 500 | $ 1.29 | |||
| 1000 | $ 1.19 | |||
| Digi-Reel® | 1 | $ 3.63 | ||
| 10 | $ 2.32 | |||
| 25 | $ 1.98 | |||
| 100 | $ 1.60 | |||
| 250 | $ 1.41 | |||
| 500 | $ 1.29 | |||
| 1000 | $ 1.19 | |||
| Tape & Reel (TR) | 2500 | $ 1.14 | ||
Description
General part information
MPM3820 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 6V 2A 2.7V - 6V Input
Documents
Technical documentation and resources
No documents available
