MNG14-14R/SX-BOTTLE

Active

3M (TC)

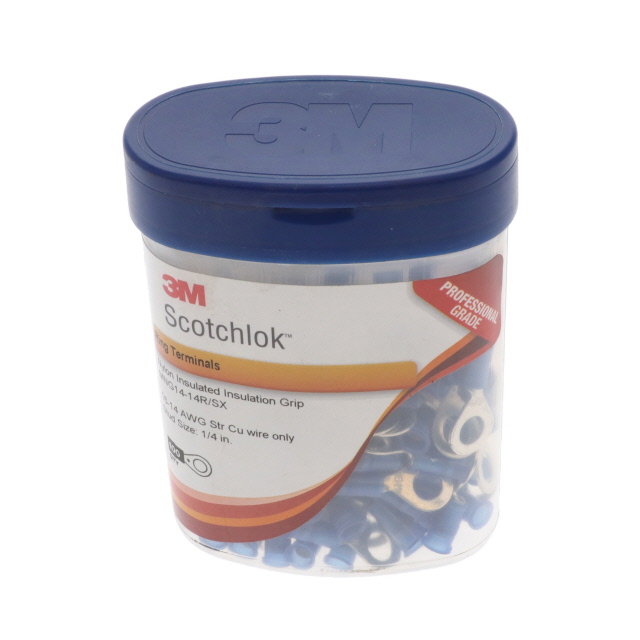

CONN RING CIRC 14-16AWG 100PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MNG14-14R/SX-BOTTLE

Active

3M (TC)

CONN RING CIRC 14-16AWG 100PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MNG14-14R/SX-BOTTLE

Color	Blue
Contact Finish	Tin
Contact Material	ETP, Copper
Insulation	Insulated
Length - Overall [x]	1.09 in
Length - Overall [x]	27.69 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.03 in
Thickness	0.76 mm
Width - Outer Edges [y]	0.47 in
Width - Outer Edges [y]	11.94 mm

MNG14 Series

Part	Thickness	Thickness	Contact Finish	Width - Outer Edges	Width - Outer Edges [y]	Color	Stud/Tab Size	Mounting Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Termination	Insulation	Material - Insulation	Terminal Type	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination [custom]	Length - Termination [custom]	Tab Thickness	Tab Thickness	Gender	Tab Width	Tab Width	Stud/Tab Size	Number of Wire Entries	Width - Outer Edges [y]
3M (TC) MNG14-8R/LK	0.03 in	0.76 mm	Tin	7.87 mm	0.31 in	Blue	8 Stud	Free Hanging (In-Line)	0.94 in	23.88 mm	Copper ETP	Crimp	Insulated	Nylon Polyamide (PA)	Circular
3M (TC) MNG14-8FBX-BOTTLE			Tin			Blue	8 Stud	Free Hanging (In-Line)	0.86 "	21.84 mm	Copper ETP	Crimp	Insulated	Nylon Polyamide (PA)	Standard	0.25 in	6.35 mm	11.68 mm	0.46 in
3M (TC) MNG14-250DMFX-A-BOTTLE						Blue		Free Hanging (In-Line)	0.88 in	22.35 mm		Crimp	Non-Mating End Insulated		Stacked					0.032 in	0.81 mm	Female Male	6.35 mm	0.25 in
3M (TC) MNG14-6FBK			Tin			Blue		Free Hanging (In-Line)	0.86 "	21.84 mm	Copper ETP	Crimp	Insulated	Nylon Polyamide (PA)	Standard	0.25 in	6.35 mm	11.68 mm	0.46 in						6 Stud
3M (TC) MNG14-10R/LK	0.03 in	0.76 mm	Tin	7.87 mm	0.31 in	Blue		Free Hanging (In-Line)	0.94 in	23.88 mm	Copper ETP	Crimp	Insulated	Nylon Polyamide (PA)	Circular										10 Stud
3M (TC) MNG14-250DMX-BOTTLE			Tin			Blue		Free Hanging (In-Line)	0.94 in	23.88 mm	Copper ETP	Crimp	Non-Mating End Insulated		Standard					0.032 in	0.81 mm	Male	6.35 mm	0.25 in
3M (TC) MNG14BCK						Blue						Crimp	Fully Insulated		Butt Splice Individual Openings Inline											2
3M (TC) MNG14-10FLK			Tin		0.32 in	Blue		Free Hanging (In-Line)	0.89 in	22.61 mm	Copper ETP	Crimp	Insulated	Nylon Polyamide (PA)	Snap Spring	0.25 in	6.35 mm	11.68 mm	0.46 in						10 Stud		8.13 mm
3M (TC) MNG14-250DMIX-BOTTLE			Tin			Blue		Free Hanging (In-Line)	0.95 in	24.13 mm	Copper ETP	Crimp	Fully Insulated		Standard					0.032 in	0.81 mm	Male	6.35 mm	0.25 in
3M (TC) MNG14-14R/SX-BOTTLE	0.03 in	0.76 mm	Tin		0.47 in	Blue		Free Hanging (In-Line)	1.09 in	27.69 mm	Copper ETP	Crimp	Insulated	Nylon Polyamide (PA)	Circular										0.25 Stud		11.94 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 143.54

Description

General part information

MNG14 Series

Ring Terminal Connector 1/4 Stud Circular 14-16 AWG Crimp

Documents

Technical documentation and resources
