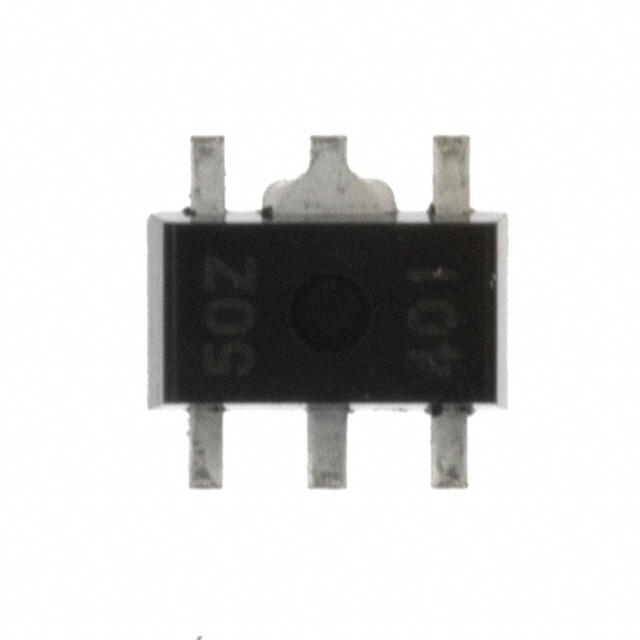

NJM12856U2-25-TE1

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 2.5V 1A SOT89-5

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NJM12856U2-25-TE1

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 2.5V 1A SOT89-5

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NJM12856U2-25-TE1

Control Features	Soft Start, Enable
Current - Output	1 A
Current - Quiescent (Iq)	0.6 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	SOT-89-5/6
Protection Features	Over Current, Reverse Current, Over Temperature
PSRR	73 dB
Supplier Device Package	SOT-89-5
Voltage - Input (Max) [Max]	6.5 V
Voltage - Output (Min/Fixed)	2.5 V
Voltage Dropout (Max) [Max]	0.2 V

NJM12856 Series

Part	Number of Regulators	Supplier Device Package	Current - Output	Protection Features	Current - Quiescent (Iq)	Package / Case	Voltage - Output (Min/Fixed)	PSRR	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Output Configuration	Voltage Dropout (Max) [Max]	Voltage - Input (Max) [Max]	Mounting Type	Control Features
Nisshinbo Micro Devices Inc NJM12856DL3-25-TE1	1	TO-252-5	1 A	Over Current Over Temperature Reverse Current	0.6 mA	TO-252-6 DPAK (5 Leads + Tab)	2.5 V	73 dB	125 °C	-40 °C	1.81 mOhm	Positive	0.2 V	6.5 V	Surface Mount	Enable Soft Start
Nisshinbo Micro Devices Inc NJM12856DL3-33-TE1	1	TO-252-5	1 A	Over Current Over Temperature Reverse Current	0.6 mA	TO-252-6 DPAK (5 Leads + Tab)	3.3 V	72 dB	125 °C	-40 °C	1.81 mOhm	Positive	0.2 V	6.5 V	Surface Mount	Enable Soft Start
Nisshinbo Micro Devices Inc NJM12856U2-15-TE1	1	SOT-89-5	1 A	Over Current Over Temperature Reverse Current	0.6 mA	SOT-89-5/6	1.5 V	78 dB	125 °C	-40 °C	1.81 mOhm	Positive		6.5 V	Surface Mount	Enable Soft Start
Nisshinbo Micro Devices Inc NJM12856U2-25-TE1	1	SOT-89-5	1 A	Over Current Over Temperature Reverse Current	0.6 mA	SOT-89-5/6	2.5 V	73 dB	125 °C	-40 °C	1.81 mOhm	Positive	0.2 V	6.5 V	Surface Mount	Enable Soft Start
Nisshinbo Micro Devices Inc NJM12856DL3-05-TE1	1	TO-252-5	1 A	Over Current Over Temperature Reverse Current	0.6 mA	TO-252-6 DPAK (5 Leads + Tab)	5 V	68 dB	125 °C	-40 °C	1.81 mOhm	Positive	0.2 V	6.5 V	Surface Mount	Enable Soft Start
Nisshinbo Micro Devices Inc NJM12856U2-33-TE1	1	SOT-89-5	1 A	Over Current Over Temperature Reverse Current	0.6 mA	SOT-89-5/6	3.3 V	72 dB	125 °C	-40 °C	1.81 mOhm	Positive	0.2 V	6.5 V	Surface Mount	Enable Soft Start
Nisshinbo Micro Devices Inc NJM12856U2-18-TE1	1	SOT-89-5	1 A	Over Current Over Temperature Reverse Current	0.6 mA	SOT-89-5/6	1.8 V	76 dB	125 °C	-40 °C	1.81 mOhm	Positive		6.5 V	Surface Mount	Enable Soft Start

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.25
		5000	$ 0.24
		10000	$ 0.23
		25000	$ 0.22

Description

General part information

NJM12856 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-89-5
