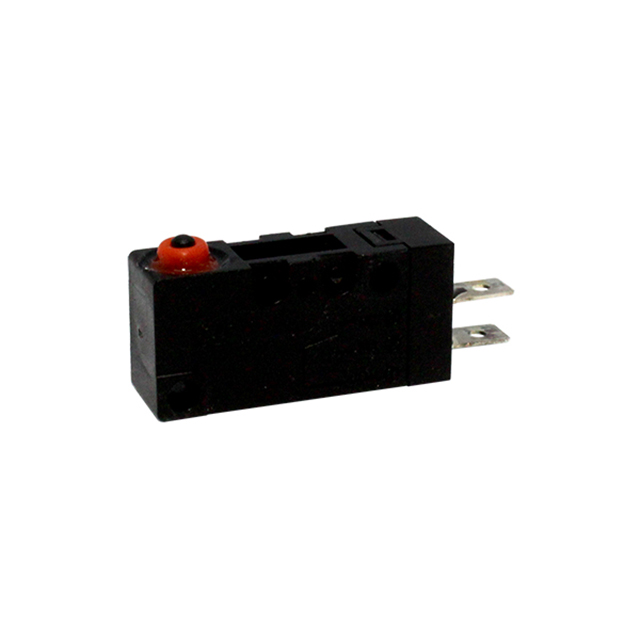

VM3SAQF1802L00

Active

CIT Relay and Switch

SWITCH LIMIT SPST-NO 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

VM3SAQF1802L00

Active

CIT Relay and Switch

SWITCH LIMIT SPST-NO 10A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VM3SAQF1802L00

Actuator Type	Round (Pin Plunger)
Circuit	SPST-NO
Differential Travel	0.8 mm
Differential Travel	0.031 "
Electrical Life	50000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	180 gf
Operating Position	0.581 "
Operating Position	14.75 mm
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.8 mm
Overtravel	0.031 in
Pretravel	0.063 in
Pretravel	1.6 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	36 VDC

VM3SA Series

Part	Mechanical Life	Actuator Type	Voltage Rating - DC	Circuit	Operating Force	Voltage Rating - AC	Mounting Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Operating Position	Operating Position	Overtravel	Overtravel	Release Force	Differential Travel	Differential Travel	Switch Function	Pretravel	Pretravel	Electrical Life	Operating Position
CIT Relay and Switch VM3SAQF3002L00	1000000 Cycles	Round (Pin Plunger)	36 VDC	SPST-NO	320 gf	125 V	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-40 °C	120 °C	IP67 - Dust Tight Waterproof	0.581 "	14.75 mm	0.024 in	0.6 mm	250 gf	0.8 mm	0.031 "	Off-Mom	2 mm	0.08 in	50000 Cycles
CIT Relay and Switch VM3SAGF1803L01	1000000 Cycles	Lever Roller	36 VDC	SPST-NO	140 gf	125 V	Chassis Mount	Wire Leads	-40 °C	120 °C	IP67 - Dust Tight Waterproof		20.5 mm	0.039 in	1 mm	50 gf	1.3 mm	0.05 in	Off-Mom	2.5 mm	0.1 in	50000 Cycles	0.807 in
CIT Relay and Switch VM3SAQF1802L06	1000000 Cycles	Lever Roller	36 VDC	SPST-NO	240 gf	125 V	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-40 °C	120 °C	IP67 - Dust Tight Waterproof		20.5 mm	0.02 in	0.5 mm		1 mm	0.04 in	Off-Mom	1.5 mm	0.06 in	50000 Cycles	0.807 in
CIT Relay and Switch VM3SAQF1802L01	1000000 Cycles	Lever Roller	36 VDC	SPST-NO	140 gf	125 V	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-40 °C	120 °C	IP67 - Dust Tight Waterproof		20.5 mm	0.039 in	1 mm	50 gf	1.3 mm	0.05 in	Off-Mom	2.5 mm	0.1 in	50000 Cycles	0.807 in
CIT Relay and Switch VM3SAGF3003L02	1000000 Cycles	Lever Simulated Roller	36 VDC	SPST-NO	200 gf	125 V	Chassis Mount	Wire Leads	-40 °C	120 °C	IP67 - Dust Tight Waterproof		18.3 mm	0.024 in	0.6 mm	180 gf	1.5 mm	0.06 "	Off-Mom	3 mm	0.118 in	50000 Cycles	0.72 in
CIT Relay and Switch VM3SAQF1802L04	1000000 Cycles	Lever Straight	36 VDC	SPST-NO	190 gf	125 V	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-40 °C	120 °C	IP67 - Dust Tight Waterproof		15.3 mm	0.02 in	0.5 mm	80 gf	1 mm	0.04 in	Off-Mom	1.8 mm	0.071 in	50000 Cycles	0.602 "
CIT Relay and Switch VM3SAQF1803L01	1000000 Cycles	Lever Roller	36 VDC	SPST-NO	140 gf	125 V	Chassis Mount	Wire Leads	-40 °C	120 °C	IP67 - Dust Tight Waterproof		20.5 mm	0.039 in	1 mm	50 gf	1.3 mm	0.05 in	Off-Mom	2.5 mm	0.1 in	50000 Cycles	0.807 in
CIT Relay and Switch VM3SAGF1802L04	1000000 Cycles	Lever Straight	36 VDC	SPST-NO	190 gf	125 V	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-40 °C	120 °C	IP67 - Dust Tight Waterproof		15.3 mm	0.02 in	0.5 mm	80 gf	1 mm	0.04 in	Off-Mom	1.8 mm	0.071 in	50000 Cycles	0.602 "
CIT Relay and Switch VM3SAQF1802L00	1000000 Cycles	Round (Pin Plunger)	36 VDC	SPST-NO	180 gf	125 V	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-40 °C	120 °C	IP67 - Dust Tight Waterproof	0.581 "	14.75 mm	0.031 in	0.8 mm		0.8 mm	0.031 "	Off-Mom	1.6 mm	0.063 in	50000 Cycles
CIT Relay and Switch VM3SAGF1803L02	1000000 Cycles	Lever Simulated Roller	36 VDC	SPST-NO	120 gf	125 V	Chassis Mount	Wire Leads	-40 °C	120 °C	IP67 - Dust Tight Waterproof		18.7 mm	0.039 in	1 mm	50 gf	1.3 mm	0.05 in	Off-Mom	3 mm	0.118 in	50000 Cycles	0.736 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.24
		10	$ 4.99
		25	$ 4.74
		50	$ 4.62
		100	$ 3.99
		300	$ 3.74
		500	$ 3.55
		1000	$ 3.43

Description

General part information

VM3SA Series

Switch SPST-NO Chassis Mount

Documents

Technical documentation and resources

No documents available
