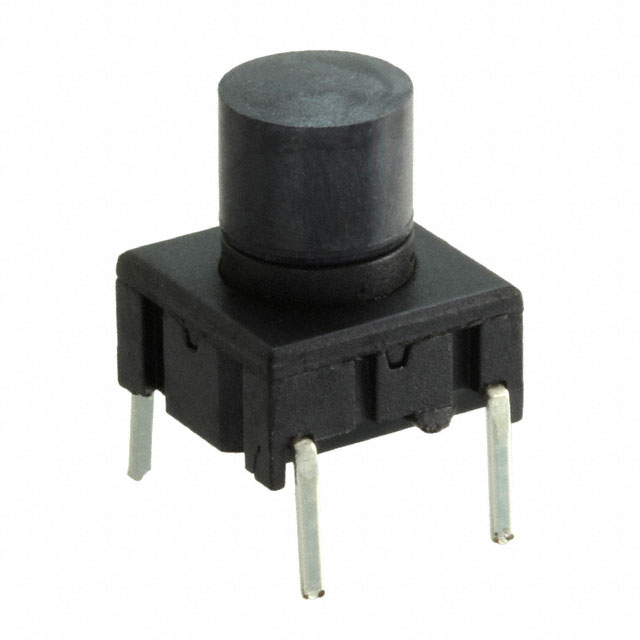

3ETH9-12.0
ActiveMEC Switches
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
3ETH9-12.0
ActiveMEC Switches
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3ETH9-12.0 |
|---|---|
| Actuator Height off PCB, Vertical [z] | 12 mm |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Features | Sealed - Flux Protection |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 300 gf |
| Operating Temperature [Max] | 160 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 10.1 mm |
| Outline [y] | 10.1 mm |
| Switch Function | Off-Mom |
| Switch Travel | 1 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.07 | |
| 10 | $ 3.90 | |||
| 50 | $ 3.31 | |||
| 100 | $ 3.09 | |||
| 250 | $ 2.80 | |||
| 500 | $ 2.60 | |||
| 1000 | $ 2.41 | |||
| 2500 | $ 2.19 | |||
Description
General part information
3ETH9 Series
Tactile Switch SPST-NO Top Actuated Through Hole
