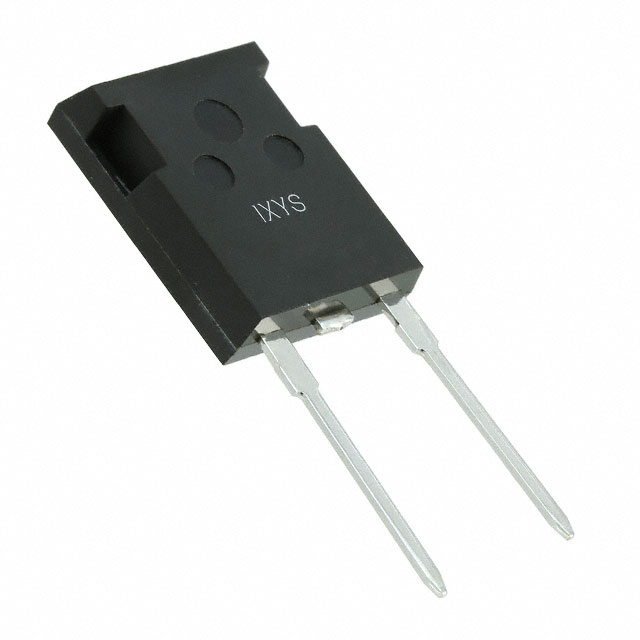

DSEP30-06BR

Active

IXYS

DIODE GP 600V 30A ISOPLUS247

Search across all available documentation for this part.

Active

IXYS

DIODE GP 600V 30A ISOPLUS247

Technical Specifications

Parameters and characteristics for this part

Specification	DSEP30-06BR

Current - Average Rectified (Io)	30 A
Current - Reverse Leakage @ Vr	250 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	ISOPLUS247™
Reverse Recovery Time (trr)	30 ns
Speed	200 mA, 500 ns
Supplier Device Package	ISOPLUS247™ (BR)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	2.51 V

Part	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Package / Case	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Supplier Device Package	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If [Max]
IXYS DSEP30-12B	12 pF	100 µA	3.75 V	TO-247-2	Standard	175 ░C	-55 C	Through Hole	1.2 kV	Standard Recovery >500ns	200 mA	TO-247	30 A
IXYS DSEP30-03AS		250 µA	1.55 V	TO-3P-3 Full Pack	Standard	175 °C		Through Hole	300 V		200 mA 500 ns	TO-247AD	30 A	22 ns
IXYS DSEP30-06BR		250 µA	2.51 V	ISOPLUS247™	Standard	175 ░C	-55 C	Through Hole	600 V		200 mA 500 ns	ISOPLUS247™ (BR)	30 A	30 ns
IXYS DSEP30-06A		250 µA		TO-247-2	Standard	175 ░C	-55 C	Through Hole	600 V		200 mA 500 ns	TO-247AD	30 A	35 ns	1.6 V
IXYS DSEP30-06B		250 µA	2.51 V	ISOPLUS247™	Standard	175 ░C	-55 C	Through Hole	600 V		200 mA 500 ns	ISOPLUS247™ (BR)	30 A	30 ns
IXYS DSEP30-12AR		250 µA	2.74 V	TO-247-3	Standard	175 ░C	-55 C	Through Hole	1.2 kV		200 mA 500 ns	ISOPLUS247™	30 A	40 ns
IXYS DSEP30-06CR		250 µA		TO-247-3	Standard	175 ░C	-55 C	Through Hole	600 V		200 mA 500 ns	ISOPLUS247™	30 A	15 ns	3.07 V
IXYS DSEP30-12CR		250 µA	4.98 V	ISOPLUS247™	Standard	175 ░C	-55 C	Through Hole	1.2 kV		200 mA 500 ns	ISOPLUS247™ (BR)	30 A	15 ns
IXYS DSEP30-04A		250 µA	1.46 V	TO-247-2	Standard	175 ░C	-55 C	Through Hole	400 V		200 mA 500 ns	TO-247AD	30 A	30 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 600 V 30A Through Hole ISOPLUS247™ (BR)
