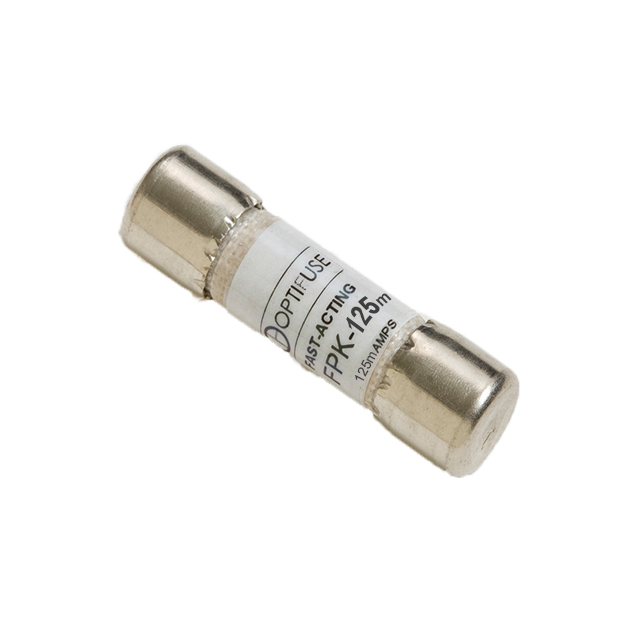

FPK-125MA

Active

OptiFuse

CLASS M FUSE, FAST ACTING 125MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FPK-125MA

Active

OptiFuse

CLASS M FUSE, FAST ACTING 125MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FPK-125MA

Approval Agency	CSA, UL
Breaking Capacity @ Rated Voltage	100 kA
Current Rating (Amps)	125 mA
Fuse Type	Cartridge, Ceramic
Mounting Type	Requires Holder
Package / Case	5AG
Package / Case [x]	10 mm
Package / Case [y]	38 mm
Response Time	Fast Blow
Size / Dimension [diameter]	0.406 in
Size / Dimension [diameter]	10.3 mm
Size / Dimension [x]	38 mm
Size / Dimension [x]	1.496 "
Voltage Rating - AC	600 V
Voltage Rating - DC	600 V

FPK Series

Part	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Current Rating (Amps)	Response Time	Fuse Type	Mounting Type	Breaking Capacity @ Rated Voltage	Applications	Voltage Rating - AC	Package / Case	Package / Case [y]	Package / Case [x]	Approval Agency	Class	Voltage Rating - DC
OptiFuse FPK-R-5A	38 mm	0.406 in	1.496 "	10.3 mm	5 A	Fast Blow	Cartridge	Requires Holder	20 kA 200 kA	Electrical Industrial	600 VAC	5AG	38 mm	10 mm	cULus UL 248	CC
OptiFuse FPK-R-500MA	38.1 mm	0.409 in	1.5 in	10.4 mm	0.5 A	Fast Blow	Cartridge Ceramic	Requires Holder	100 kA 200 kA		600 V	5AG	38 mm	10 mm	CSA UL		600 V
OptiFuse FPK-1A	38 mm	0.406 in	1.496 "	10.3 mm		Fast Blow	Cartridge	Requires Holder	10 kA 100 kA	Electrical Industrial	600 VAC	5AG	38 mm	10 mm	cULus UL 248	M	600 V
OptiFuse FPK-R-30A	38 mm	0.406 in	1.496 "	10.3 mm	30 A	Fast Blow	Cartridge	Requires Holder	20 kA 200 kA	Electrical Industrial	600 VAC	5AG	38 mm	10 mm	cULus UL 248	CC
OptiFuse FPK-R-2A	38 mm	0.406 in	1.496 "	10.3 mm	2 A	Fast Blow	Cartridge	Requires Holder	20 kA 200 kA	Electrical Industrial	600 VAC	5AG	38 mm	10 mm	cULus UL 248	CC
OptiFuse FPK-3A	38 mm	0.406 in	1.496 "	10.3 mm	3 A	Fast Blow	Cartridge	Requires Holder	10 kA 100 kA	Electrical Industrial	600 VAC	5AG	38 mm	10 mm	cULus UL 248	M	600 V
OptiFuse FPK-125MA	38 mm	0.406 in	1.496 "	10.3 mm	125 mA	Fast Blow	Cartridge Ceramic	Requires Holder	100 kA		600 V	5AG	38 mm	10 mm	CSA UL		600 V
OptiFuse FPK-6A	38 mm	0.406 in	1.496 "	10.3 mm	6 A	Fast Blow	Cartridge	Requires Holder	10 kA 100 kA	Electrical Industrial	600 VAC	5AG	38 mm	10 mm	cULus UL 248	M	600 V
OptiFuse FPK-4A	38 mm	0.406 in	1.496 "	10.3 mm	4 A	Fast Blow	Cartridge	Requires Holder	10 kA 100 kA	Electrical Industrial	600 VAC	5AG	38 mm	10 mm	cULus UL 248	M	600 V
OptiFuse FPK-R-8A	38 mm	0.406 in	1.496 "	10.3 mm	8 A	Fast Blow	Cartridge	Requires Holder	20 kA 200 kA	Electrical Industrial	600 VAC	5AG	38 mm	10 mm	cULus UL 248	CC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FPK Series

125 mA 600 V AC 600 V DC Fuse Cartridge, Ceramic Requires Holder 5AG, 10mm x 38mm (Midget)
