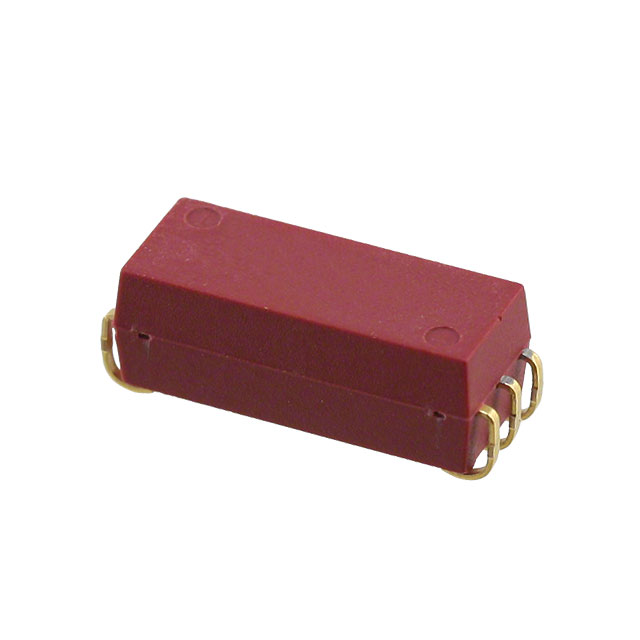

9402-05-20TR
ActiveCoto Technology
RELAY RF SPST-NO 500MA 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9402-05-20TR
ActiveCoto Technology
RELAY RF SPST-NO 500MA 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9402-05-20TR |
|---|---|
| Coil Resistance | 200 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 0.4 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.2 ms |
| Switching Voltage | 200 VDC, 200 VAC |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.13 | |
| 10 | $ 7.62 | |||
| 25 | $ 6.77 | |||
| 50 | $ 6.43 | |||
| 100 | $ 6.10 | |||
| 250 | $ 5.96 | |||
| Digi-Reel® | 1 | $ 8.13 | ||
| 10 | $ 7.62 | |||
| 25 | $ 6.77 | |||
| 50 | $ 6.43 | |||
| 100 | $ 6.10 | |||
| 250 | $ 5.96 | |||
| Tape & Reel (TR) | 1000 | $ 5.96 | ||
Description
General part information
9402-0 Series
RELAY RF SPST-NO 500MA 5V
