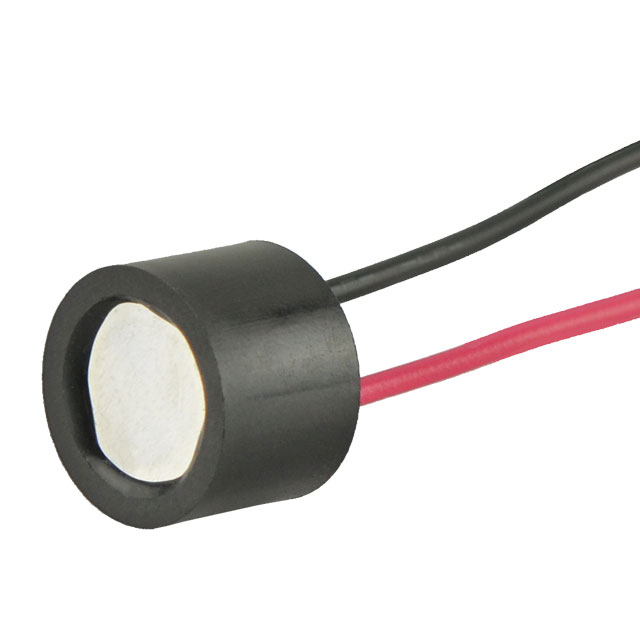

CPT-1495C-300

Active

CUI Devices

AUDIO BUZZER PIEZO 30VP-P 12MA 84DB THROUGH HOLE WIRE LEAD BOX

Search across all available documentation for this part.

Active

CUI Devices

AUDIO BUZZER PIEZO 30VP-P 12MA 84DB THROUGH HOLE WIRE LEAD BOX

Technical Specifications

Parameters and characteristics for this part

Specification	CPT-1495C-300

Current - Supply	12 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	4.25 kHz
Height - Seated (Max) [Max]	0.413 in
Height - Seated (Max) [Max]	10.5 mm
Ingress Protection	IP67 - Dust Tight, Waterproof
Input Type	Peak-Peak Signal
Mounting Type	Custom
Operating Mode	Single Tone
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Port Location	Top
Sound Pressure Level (SPL)	84 dB
Technology	Piezo
Termination	Wire Leads
Voltage - Rated	10 V
Voltage Range [Max]	30 V

Part	Driver Circuitry	Port Location	Operating Mode	Technology	Frequency	Mounting Type	Ingress Protection	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Input Type	Sound Pressure Level (SPL)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Voltage Range [Max]	Termination	Current - Supply
CUI Devices CPT-1495C-300	Externally Driven Transducer	Top	Single Tone	Piezo	4.25 kHz	Custom	IP67 - Dust Tight Waterproof	0.413 in	10.5 mm	Peak-Peak Signal	84 dB	-30 ░C	85 °C	10 V	30 V	Wire Leads	12 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Transducer, Externally Driven Piezo 10 V 12mA 4.25kHz 84dB @ 10V, 10cm Custom Wire Leads

Technical documentation and resources
