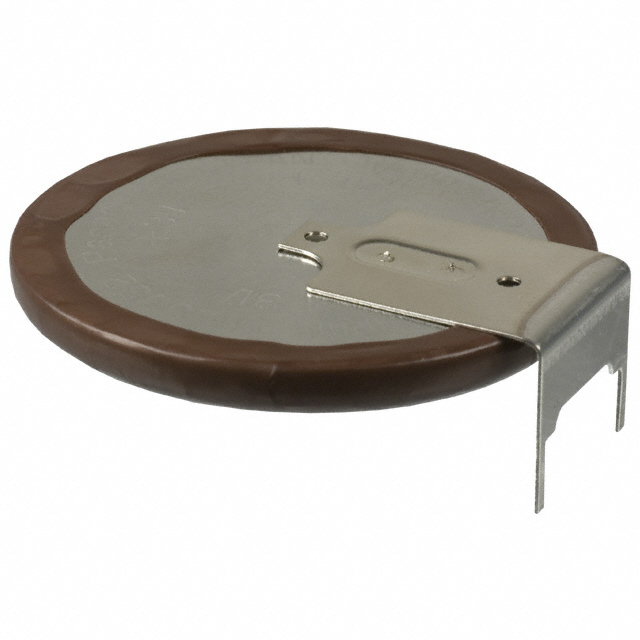

VL-3032/GUFN
ActivePanasonic Industrial Automation Sales
BATTERY LITHIUM 3V 100MAH COIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VL-3032/GUFN
ActivePanasonic Industrial Automation Sales
BATTERY LITHIUM 3V 100MAH COIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VL-3032/GUFN |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 30 mm |
| Battery Chemistry | Lithium |
| Capacity | 100 mAh |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension | 3.2 mm |
| Size / Dimension | 30 mm |
| Size / Dimension [diameter] | 1.18 in |
| Size / Dimension [z] | 0.13 in |
| Standard Charge Current | 4 mA |
| Termination Style | PC Pin (Horizontal Mount) |
| Voltage - Rated | 3 VDC |
| Weight | 6.2 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.27 | |
| 20 | $ 6.87 | |||
| 40 | $ 6.40 | |||
| 200 | $ 5.69 | |||
| 400 | $ 5.30 | |||
| 600 | $ 5.15 | |||
| 1000 | $ 5.07 | |||
Description
General part information
VL-3032 Series
Coin, 30.0mm 3 V Lithium Battery Rechargeable (Secondary) 100mAh
