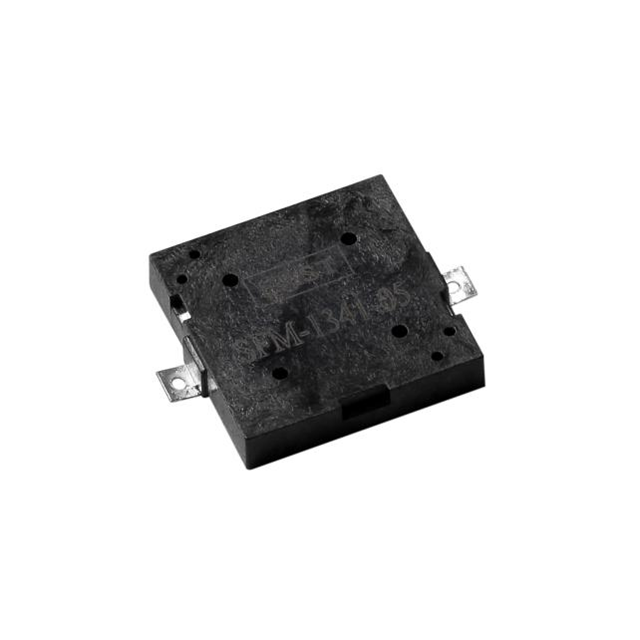

SFM-1341-05
ActiveEast Electronics
BUZZER 5V 0.669" L X 0.669" W TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFM-1341-05
ActiveEast Electronics
BUZZER 5V 0.669" L X 0.669" W TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFM-1341-05 |
|---|---|
| Current - Supply | 3 mA |
| Frequency | 4.1 kHz |
| Height - Seated (Max) [Max] [z] | 0.102 " |
| Height - Seated (Max) [Max] [z] | 2.6 mm |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [x] | 0.669 " |
| Size / Dimension [y] | 17 mm |
| Size / Dimension [y] | 0.669 in |
| Sound Pressure Level (SPL) | 80 dB |
| Termination | PC Pins |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 25 VDC |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.24 | |
| 100 | $ 1.48 | |||
| 1000 | $ 1.21 | |||
Description
General part information
SFM-1341 Series
Buzzers 5 V 3mA 4.1kHz 80dB @ 5V, 10cm Through Hole PC Pins
