STR-Y6765
ObsoleteSanken Electric USA Inc.

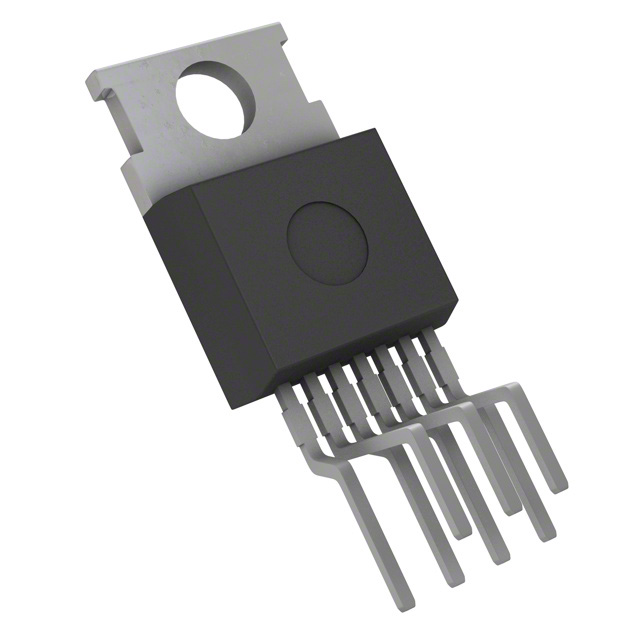

IC OFFLINE SW FLYBACK TO220F-7
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STR-Y6765
ObsoleteSanken Electric USA Inc.
IC OFFLINE SW FLYBACK TO220F-7
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STR-Y6765 |
|---|---|
| Fault Protection | Over Temperature, Over Load, Current Limiting, Over Voltage |
| Frequency - Switching [Max] | 24.4 kHz |
| Frequency - Switching [Min] | 18.4 kHz |
| Internal Switch(s) | True |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -20 °C |
| Output Isolation | Isolated |
| Package / Case | TO-220-7 Formed Leads |
| Power (Watts) | 120 W |
| Supplier Device Package | TO-220F-7 |
| Topology | Flyback |
| Voltage - Breakdown | 800 V |
| Voltage - Start Up | 15.1 V |
STR-Y6765 Series
| Part | Voltage - Start Up | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Fault Protection | Power (Watts) | Topology | Supplier Device Package | Mounting Type | Output Isolation | Frequency - Switching [Max] | Frequency - Switching [Min] | Voltage - Breakdown | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sanken Electric USA Inc. | 15.1 V | -20 °C | 115 °C | TO-220-7 Formed Leads | Current Limiting Over Load Over Temperature Over Voltage | 120 W | Flyback | TO-220F-7 | Through Hole | Isolated | 24.4 kHz | 18.4 kHz | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.15 | |
| 10 | $ 2.05 | |||
| 25 | $ 1.76 | |||
| 100 | $ 1.44 | |||
Description
General part information
STR-Y6765 Series
Converter Offline Flyback Topology 18.4kHz ~ 24.4kHz TO-220F-7
