6GK57954MX000AA0
ActiveSiemens

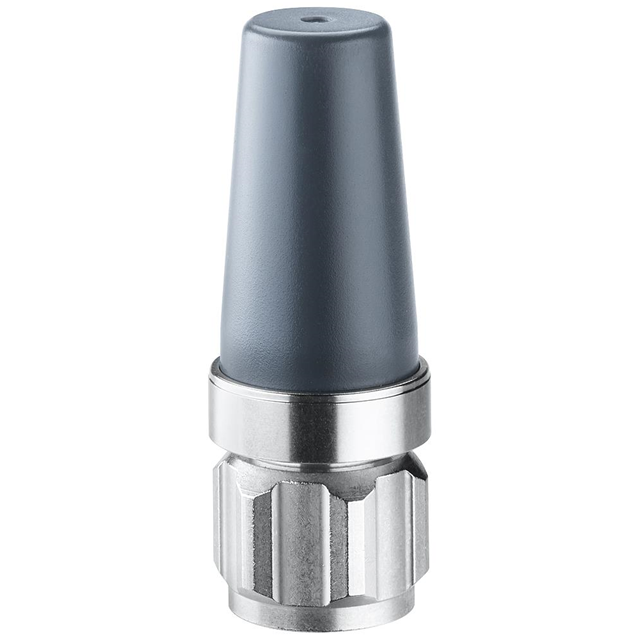

IWLAN ANTENNA ANT795-4MX
Deep-Dive with AI
Search across all available documentation for this part.
6GK57954MX000AA0
ActiveSiemens
IWLAN ANTENNA ANT795-4MX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6GK57954MX000AA0 |
|---|---|
| Antenna Type | Dome |
| Applications | WLAN |
| Frequency (Center/Band) | 5.412 GHz, 3.25 GHz, 2.35 GHz, 6.525 GHz, 1.85 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 3.8 GHz, 2.7 GHz, 7.125 GHz, 5.925 GHz, 2 GHz |
| Frequency Range [Min] | 2 GHz, 2.7 GHz, 4.9 GHz, 5.925 GHz, 1.7 GHz |
| Gain | 2.5 dBi, 2 dBic |
| Height (Max) [Max] | 2.165 in |
| Height (Max) [Max] | 55 mm |
| Ingress Protection | IP68, IP69K |
| Number of Bands [custom] | 5 |
| RF Family/Standard | WiFi |
| Termination | N Type Male |
| VSWR | 2 |
6GK57954 Series
| Part | Mounting Type | VSWR | Ingress Protection | Number of Bands | Frequency Range [Max] | Frequency Range [Min] | RF Family/Standard | Applications | Gain | Height (Max) [Max] | Height (Max) [Max] | Antenna Type | Termination | Frequency (Center/Band) | Frequency Group | Frequency Group [Min] | Frequency Group [Max] | Number of Bands [custom] | Frequency Group | Height (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | Connector Mount | 2 | IP65 | 3 | 2.4835 GHz 5.35 GHz 5.85 GHz | 2.4 GHz 5.15 GHz 5.725 GHz | WiFi | WLAN | 3 dBi 5 dBi | 160 mm | 6.299 in | Tilt Whip | N Type Male | 2.44175 GHz 5.25 GHz 5.7875 GHz | 4 GHz | 2 GHz | 3 GHz | |||
Siemens | 2 | IP68 IP69K | 2 GHz 2.7 GHz 3.8 GHz 5.925 GHz 7.125 GHz | 1.7 GHz 2 GHz 2.7 GHz 4.9 GHz 5.925 GHz | WiFi | WLAN | 2 dBic 2.5 dBi | 55 mm | 2.165 in | Dome | N Type Male | 1.85 GHz 2.35 GHz 3.25 GHz 5.412 GHz 6.525 GHz | 5 | Wide Band | ||||||
Siemens | Connector Mount | 2 | IP30 | 3 | 2.4835 GHz 5.35 GHz 5.85 GHz | 2.4 GHz 5.15 GHz 5.725 GHz | WiFi | WLAN | 3 dBi 5 dBi | 160 mm | 6.299 in | Tilt Whip | RP-SMA Male | 2.44175 GHz 5.25 GHz 5.7875 GHz | 4 GHz | 2 GHz | 3 GHz | |||
Siemens | Connector Mount | 2 | IP65 | 2 | 2.5 GHz 5.85 GHz | 2.4 GHz 5.15 GHz | WiFi | Wi-Fi WLAN | 2 dBic 3 dBi | 4.488 in | Tilt Whip | SMA | 2.45 GHz 5.5 GHz | Wide Band | 114 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 83.25 | |
Description
General part information
6GK57954 Series
RF ANTENNA WLAN Dome N Type Male Panel Mount
