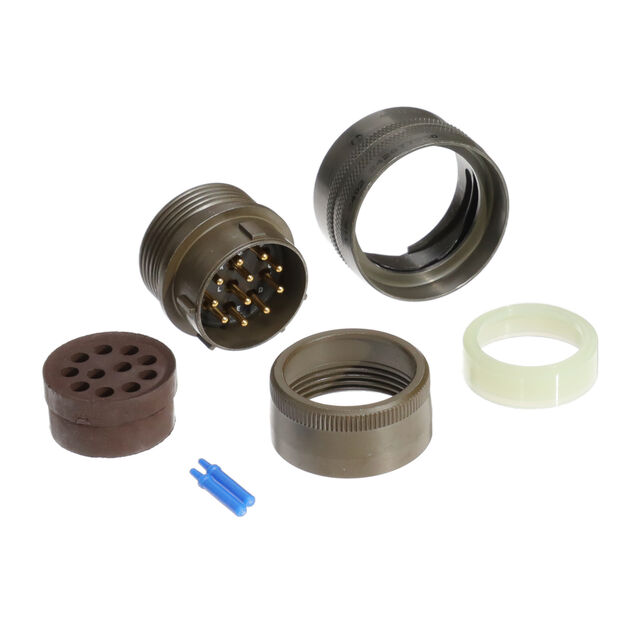

MS3116E18-11P

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	MS3116E18-11P

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Features	Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	11
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	18-11
Shielding	Unshielded
Voltage Rating	1000 VAC

Part	Number of Positions	Shielding	Applications	Contact Material	Current Rating (Amps)	Qualification	Fastening Type	Connector Type	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Ingress Protection	Voltage Rating	Grade	Shell Material	Shell Size - Insert	Shell Finish	Mounting Type	Color	Features	Orientation	Insert Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]
Amphenol Industrial Operations MS3116E18-11P	11	Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Copper Alloy	13 A	MIL-DTL-26482 Series I	Bayonet Lock	Male Pins Plug	Metal	-55 °C	125 °C	Gold	Environment Resistant	1000 VAC	Military	Aluminum Alloy	18-11	Olive Drab Chromate over Cadmium	Free Hanging (In-Line)	Olive Drab	Backshell	N	Neoprene
Amphenol Industrial Operations MS3116E18-32P		Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Copper Alloy	7.5 A	MIL-DTL-26482 Series I	Bayonet Lock	Male Pins Plug	Metal	-55 °C	125 °C	Gold	Environment Resistant	600 VAC	Military	Aluminum Alloy		Olive Drab Chromate over Cadmium	Free Hanging (In-Line)	Olive Drab	Backshell	N	Neoprene	32	18
Amphenol Industrial Operations MS3116E18-32S

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 Position Circular Connector Plug, Male Pins Solder Cup
