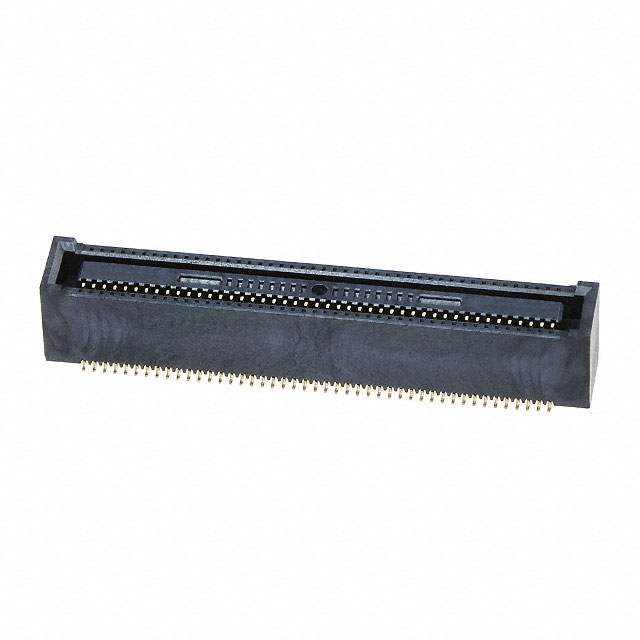

DF40HC(4.0)-90DS-0.4V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 90POS SMD GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 90POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF40HC(4.0)-90DS-0.4V(51)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Height Above Board	0.154 in
Height Above Board	3.9 mm
Mated Stacking Heights	4 mm
Mounting Type	Surface Mount
Number of Positions	90
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Positions	Mated Stacking Heights	Connector Type	Mounting Type	Height Above Board	Height Above Board	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. DF40HC(4.0)-60DS-0.4V(52)	60	4 mm	Center Strip Contacts Receptacle
Hirose Electric USA, Inc. DF40HC(2.5)-30DS-0.4V(70)	30	2.5 mm	Center Strip Contacts Receptacle	Surface Mount	0.094 "	2.4 mm	Gold	2	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF40HC(4.0)-60DS-0.4V(66)	60	4 mm	Center Strip Contacts Receptacle
Hirose Electric USA, Inc. DF40HC(3.5)-80DS-0.4V(58)	80	3.5 mm	Center Strip Contacts Receptacle	Surface Mount			Gold	2	0.016 in	0.4 mm	3.4 mm	0.134 in
Hirose Electric USA, Inc. DF40HC(3.0)-44DS-0.4V(70)	44	3 mm	Center Strip Contacts Receptacle
Hirose Electric USA, Inc. DF40HC(2.5)-60DS-0.4V(51)	60	2.5 mm	Center Strip Contacts Receptacle	Surface Mount	0.094 "	2.4 mm	Gold	2	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF40HC(3.0)-80DS-0.4V(51)	80	3 mm	Center Strip Contacts Receptacle	Surface Mount			Gold	2	0.016 in	0.4 mm	2.9 mm	0.114 "
Hirose Electric USA, Inc. DF40HC(4.0)-90DS-0.4V(51)	90	4 mm	Center Strip Contacts Receptacle	Surface Mount	0.154 in	3.9 mm	Gold	2	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF40HC(3.0)-50DS-0.4V(58)	50	3 mm	Center Strip Contacts Receptacle	Surface Mount			Gold	2	0.016 in	0.4 mm	2.9 mm	0.114 "
Hirose Electric USA, Inc. DF40HC(3.0)-90DS-0.4V(51)	90	3 mm	Center Strip Contacts Receptacle	Surface Mount			Gold	2	0.016 in	0.4 mm	2.9 mm	0.114 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

90 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
