50M36-01-2-02N

Active

Grayhill Inc.

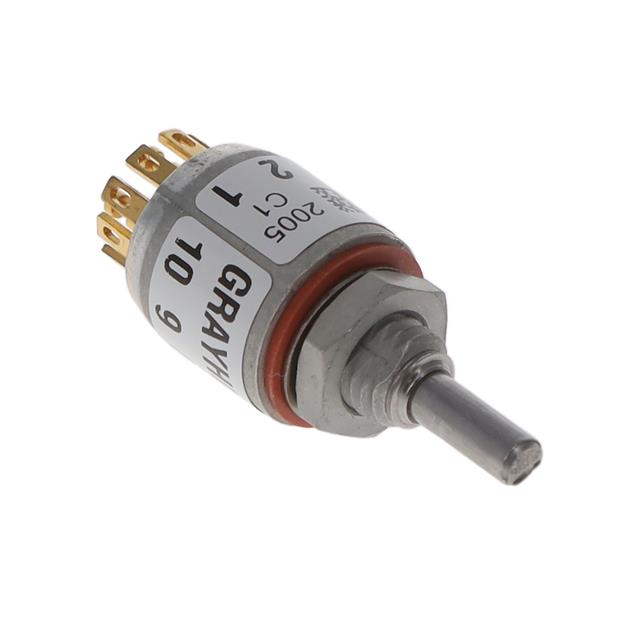

SWITCH ROTARY 2POS 150MA 115V

Deep-Dive with AI

Search across all available documentation for this part.

50M36-01-2-02N

Active

Grayhill Inc.

SWITCH ROTARY 2POS 150MA 115V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	50M36-01-2-02N

Actuator Length [x]	9.53 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	36 °
Circuit per Deck	DPDT
Contact Finish	Gold
Contact Timing	Non-Shorting
Current Rating (Amps)	200 mA, 150 mA
Depth Behind Panel [z]	18.77 mm
Index Stops	Fixed
Number of Decks [custom]	1
Number of Poles per Deck	2
Number of Positions	2
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

50M36 Series

Part	Depth Behind Panel [z]	Angle of Throw	Voltage Rating - DC	Actuator Length [x]	Contact Timing	Number of Decks [custom]	Number of Poles per Deck	Circuit per Deck	Voltage Rating - AC	Actuator Type [diameter]	Actuator Type	Termination Style	Index Stops	Contact Finish	Current Rating (Amps)	Number of Positions
Grayhill Inc. 50M36-01-1-05N	18.77 mm	36 °	28 V	9.53 mm	Non-Shorting	1	1	SP5T	115 V	3.17 mm	Flatted	Solder Lug	Fixed	Gold	150 mA 200 mA
Grayhill Inc. 50M36-01-1-07N	18.77 mm	36 °	28 V	9.53 mm	Non-Shorting	1	1	SP7T	115 V	3.17 mm	Flatted	Solder Lug	Fixed	Gold	150 mA 200 mA	7
Grayhill Inc. 50M36-01-2-03S	18.77 mm	36 °	28 V	9.53 mm	Shorting	1	2	DP3T	115 V	3.17 mm	Flatted	Solder Lug	Fixed	Gold	150 mA 200 mA
Grayhill Inc. 50M36-01-1-04N	18.77 mm	36 °	28 V	9.53 mm	Non-Shorting	1	1	SP4T	115 V	3.17 mm	Flatted	Solder Lug	Fixed	Gold	150 mA 200 mA	4
Grayhill Inc. 50M36-01-2-04N	18.77 mm	36 °	28 V	9.53 mm	Non-Shorting	1	2	DP4T	115 V	3.17 mm	Flatted	Solder Lug	Fixed	Gold	150 mA 200 mA	4
Grayhill Inc. 50M36-01-2-02N	18.77 mm	36 °	28 V	9.53 mm	Non-Shorting	1	2	DPDT	115 V	3.17 mm	Flatted	Solder Lug	Fixed	Gold	150 mA 200 mA	2
Grayhill Inc. 50M36-01-1-08N	18.77 mm	36 °	28 V	9.53 mm	Non-Shorting	1	1	SP8T	115 V	3.17 mm	Flatted	Solder Lug	Fixed	Gold	150 mA 200 mA	8
Grayhill Inc. 50M36-01-1-09N	18.77 mm	36 °	28 V	9.53 mm	Non-Shorting	1	1	SP9T	115 V	3.17 mm	Flatted	Solder Lug	Fixed	Gold	150 mA 200 mA	9
Grayhill Inc. 50M36-01-2-05N	18.77 mm	36 °	28 V	9.53 mm	Non-Shorting	1	2	DP5T	115 V	3.17 mm	Flatted	Solder Lug	Fixed	Gold	150 mA 200 mA
Grayhill Inc. 50M36-01-1-06N	18.77 mm	36 °	28 V	9.53 mm	Non-Shorting	1	1	SP6T	115 V	3.17 mm	Flatted	Solder Lug	Fixed	Gold	150 mA 200 mA	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.23
		5	$ 36.29
		10	$ 33.98
		25	$ 31.15
		50	$ 29.15
		100	$ 27.27
		250	$ 24.96

Description

General part information

50M36 Series

Rotary Switch 2 Position DPDT 150mA (AC), 200mA (DC) 115 VAC Panel Mount
