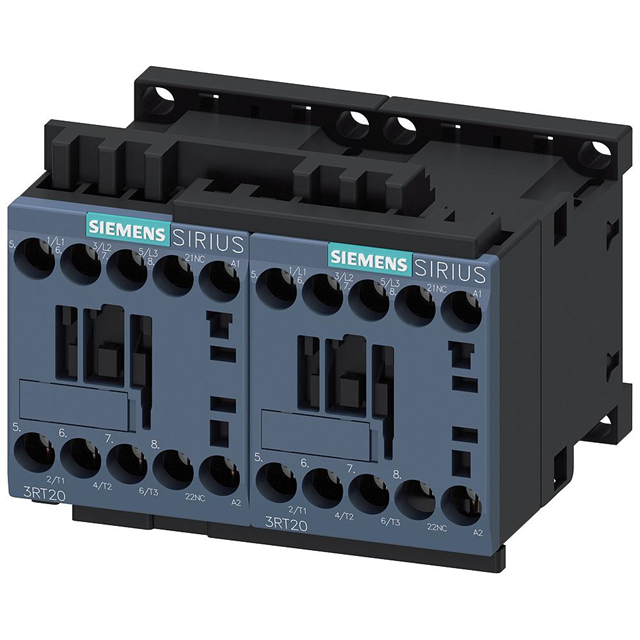

3RA23168XB301AH0
ActiveSiemens
CONTACTOR REV S00 9A 48VAC SCRW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3RA23168XB301AH0
ActiveSiemens
CONTACTOR REV S00 9A 48VAC SCRW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RA23168XB301AH0 |
|---|---|
| Coil Power | 27 VA |
| Coil Voltage | 48 VAC/DC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 9 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 40.8 VAC |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Switching Voltage | 690 VAC |
| Termination Style | Screw Terminal |
3RA23168XB Series
| Part | Mounting Type | Contact Form | Termination Style | Contact Rating (Current) | Features | Coil Voltage | Coil Power | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Coil Voltage [Min] | Coil Voltage [Max] | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | Chassis Mount DIN Rail | 3PST-NO (3 Form A) | Screw Terminal | 9 A | Auxiliary Contacts | 24 VDC | 4 W | 690 VAC | -25 °C | 60 °C | |||
Siemens | Chassis Mount DIN Rail | 3PST-NO (3 Form A) | Screw Terminal | 9 A | Auxiliary Contacts | 27 VA | 690 VAC | -25 °C | 70 °C | 218 VAC | 237 VAC | ||
Siemens | Chassis Mount DIN Rail | 3PST-NO (3 Form A) | Screw Terminal | 9 A | Auxiliary Contacts | 24 VDC | 4 W | 690 VAC | -25 °C | 60 °C | |||
Siemens | Chassis Mount DIN Rail | 3PST-NO (3 Form A) | Screw Terminal | 9 A | Auxiliary Contacts | 48 VDC | 4 W | 690 VAC | -25 °C | 60 °C | |||
Siemens | Chassis Mount DIN Rail | 3PST-NO (3 Form A) | Screw Terminal | 9 A | Auxiliary Contacts | 24 VAC | 27 VA | 690 VAC | -25 °C | 60 °C | |||
Siemens | Chassis Mount DIN Rail | 3PST-NO (3 Form A) | Screw Terminal | 9 A | Auxiliary Contacts | 48 VAC/DC | 27 VA | 690 VAC | -25 °C | 60 °C | 40.8 VAC | ||
Siemens | Chassis Mount DIN Rail | 3PST-NO (3 Form A) | Screw Terminal | 9 A | Auxiliary Contacts | 48 VAC/DC | 27 VA | 690 VAC | -25 °C | 60 °C | 40.8 VAC | ||
Siemens | Chassis Mount DIN Rail | 3PST-NO (3 Form A) | Screw Terminal | 9 A | Auxiliary Contacts | 120 VAC | 27 VA | 690 VAC | -25 °C | 60 °C | 102 VAC | ||
Siemens | Chassis Mount DIN Rail | 3PST-NO (3 Form A) | Screw Terminal | 9 A | Auxiliary Contacts | 230 VAC | 27 VA | 690 VAC | -25 °C | 60 °C | 195.5 VAC | ||
Siemens | Chassis Mount DIN Rail | 3PST-NO (3 Form A) | Screw Terminal | 9 A | Auxiliary Contacts | 110 VAC/DC | 27 VA | 690 VAC | -25 °C | 60 °C | 93.5 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 234.31 | |
Description
General part information
3RA23168XB Series
CONTACTOR REV S00 9A 48VAC SCRW
