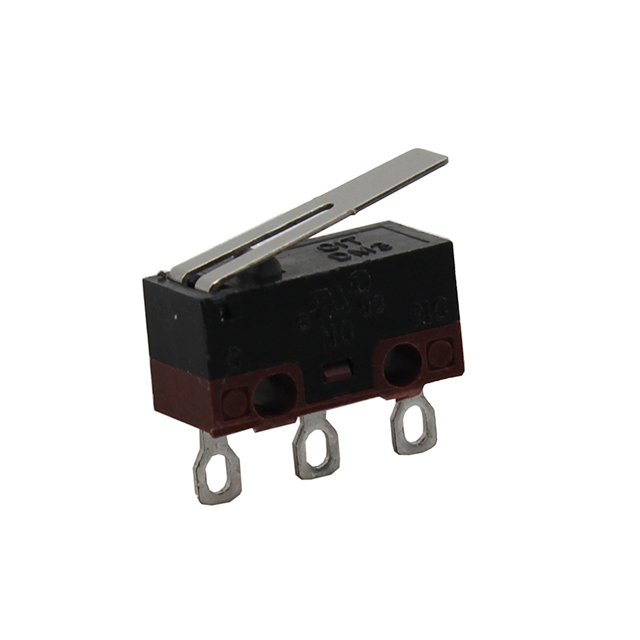

DM3CQF1002L01

Active

CIT Relay and Switch

SWITCH LIMIT SPDT 3A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH LIMIT SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Release Force	Differential Travel	Differential Travel	Termination Style	Circuit	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Actuator Type	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Voltage Rating - AC	Switch Function	Electrical Life	Overtravel	Overtravel	Operating Position	Operating Position	Mechanical Life
CIT Relay and Switch DM3CQF1005L04	15 gf	0.6 mm	0.025 in	PC Pin	SPDT	30 V	3 A	Through Hole Right Angle	Lever Simulated Roller	0.071 in	1.8 mm	85 °C	-40 °C	40 gf	125 V	On-Mom	10000 Cycles	0.035 "	0.9 mm	0.354 in	9 mm	100000 Cycles
CIT Relay and Switch DM3CQF1004L03	15 gf	0.6 mm	0.025 in	PC Pin	SPDT	30 V	3 A	Through Hole Right Angle	Lever Roller	0.071 in	1.8 mm	85 °C	-40 °C	40 gf	125 V	On-Mom	10000 Cycles	0.031 in	0.8 mm	0.508 in	12.9 mm	100000 Cycles
CIT Relay and Switch DM3CQF1002L01	15 gf	0.7 mm	0.027 "	Solder Lug	SPDT	30 V	3 A	Chassis Mount	Lever Straight	0.087 in	2.2 mm	85 °C	-40 °C	35 gf	125 V	On-Mom	10000 Cycles	0.035 "	0.9 mm	0.281 in	7.15 mm	100000 Cycles
CIT Relay and Switch DM3CQF1003L04	15 gf	0.6 mm	0.025 in	PC Pin	SPDT	30 V	3 A	Through Hole	Lever Simulated Roller	0.071 in	1.8 mm	85 °C	-40 °C	40 gf	125 V	On-Mom	10000 Cycles	0.035 "	0.9 mm	0.354 in	9 mm	100000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
