SNP3610K2

Active

HELLERMANNTYTON

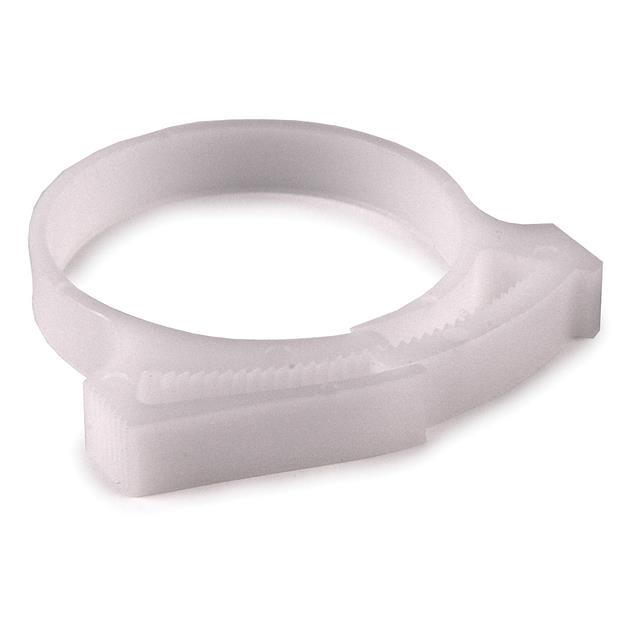

SNAPPER HOSE CLAMP, 1.46" 1.69" BUNDLE DIAMETER, POM, WHITE, 50/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SNAPPER HOSE CLAMP, 1.46" 1.69" BUNDLE DIAMETER, POM, WHITE, 50/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	SNP3610K2

Color	White
Length [Max]	2.092 "
Length [Max]	53.14 mm
Length [Min]	32.03 mm
Length [Min]	1.261 "
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	1.7 mm
Material Thickness	0.067 in
Opening Size [Max] [z]	43.79 mm
Opening Size [Max] [z]	1.724 in
Opening Size [Min] [z]	1.472 in
Opening Size [Min] [z]	37.39 mm
Type	Clamp, Hose
Type Attributes	Push-Fit

Part	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Color	Type Attributes	Material Thickness	Material Thickness	Length [Max]	Length [Max]	Length [Min]	Length [Min]	Material Flammability Rating	Material	Type	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]
HELLERMANNTYTON SNP3610K2	43.79 mm	1.472 in	1.724 in	37.39 mm	White	Push-Fit	1.7 mm	0.067 in	2.092 "	53.14 mm	32.03 mm	1.261 "	UL94 HB	Polyacetal (POM)	Clamp Hose
HELLERMANNTYTON SNP3610H4					White	Push-Fit							UL94 HB	Polyacetal (POM)	Clamp Hose	37.08 mm	42.93 mm	1.46 in	1.69 in
