QRA-6X-33/5.5-QB48IN-20

Active

Qualtek

HEATSHRINK 33/5.5MM-48"

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 33/5.5MM-48"

Technical Specifications

Parameters and characteristics for this part

Specification	QRA-6X-33/5.5-QB48IN-20

Color	Black
Inner Diameter - Supplied [diameter]	32.99 mm
Inner Diameter - Supplied [diameter]	1.299 in
Length [x]	1.22 m
Length [x]	4 ft
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.134 in
Recovered Wall Thickness	3.4 mm
Shelf Life	60 Months
Shrink Temperature	120 °C
Shrinkage Ratio	6 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Shrinkage Ratio	Shelf Life	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Operating Temperature [Min]	Operating Temperature [Max]
Qualtek QRA-6X-33/5.5-QB48IN-20	6 to 1	60 Months	120 °C	0.134 in	3.4 mm	1.22 m	4 ft	-50 °F -10 °C	40 °C	Black	32.99 mm	1.299 in	Tubing Flexible	-55 °C	110 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

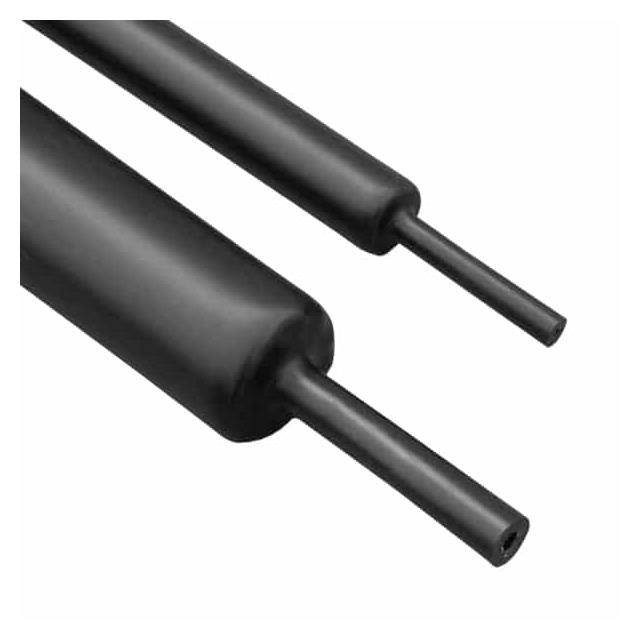

Heat Shrink Tubing, Flexible 1.299" (32.99mm) 6 to 1 Black 4.00' (1.22m)

Technical documentation and resources
