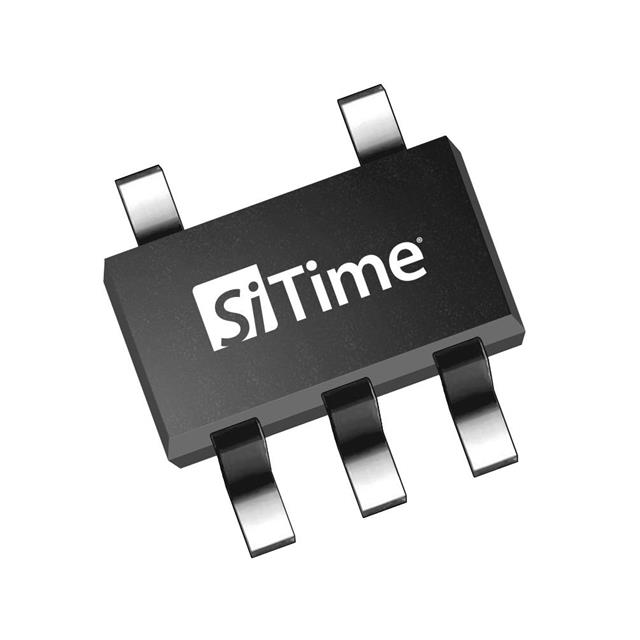

SIT2044BM-S3-33EA25.000000G
ActiveSiTime
MEMS OSC XO 25.000000 MHZ LVCMOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SIT2044BM-S3-33EA25.000000G
ActiveSiTime
MEMS OSC XO 25.000000 MHZ LVCMOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SIT2044BM-S3-33EA25.000000G |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Max) [Max] | 4.8 mA |
| Frequency | 25 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 1.45 mm |
| Height - Seated (Max) [Max] | 0.057 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output | LVCMOS, LVTTL |
| Package / Case | SC-74A, SOT-753 |
| Ratings | AEC-Q100 |
| Size / Dimension [x] | 0.114 in |
| Size / Dimension [x] | 2.9 mm |
| Size / Dimension [y] | 1.6 mm |
| Size / Dimension [y] | 0.063 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 21.84 | |
Description
General part information
SIT2044 Series
25 MHz XO (Standard) LVCMOS, LVTTL Oscillator 3.3V Enable/Disable SC-74A, SOT-753
