T 3638 000
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 12P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T 3638 000 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 3 A |
| Ingress Protection | IP40 |
| Number of Positions | 12 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-12 |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.26 | |
| 10 | $ 16.69 | |||
| 25 | $ 15.82 | |||
| 50 | $ 15.59 | |||
| 210 | $ 13.76 | |||
| 420 | $ 12.84 | |||
| 630 | $ 12.56 | |||
Description
General part information
T 3638 Series

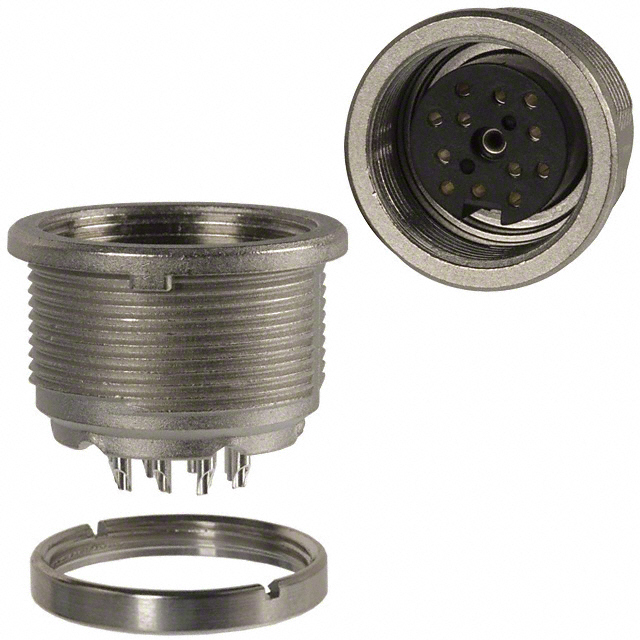

12 Position Circular Connector Receptacle, Female Sockets Solder Cup
