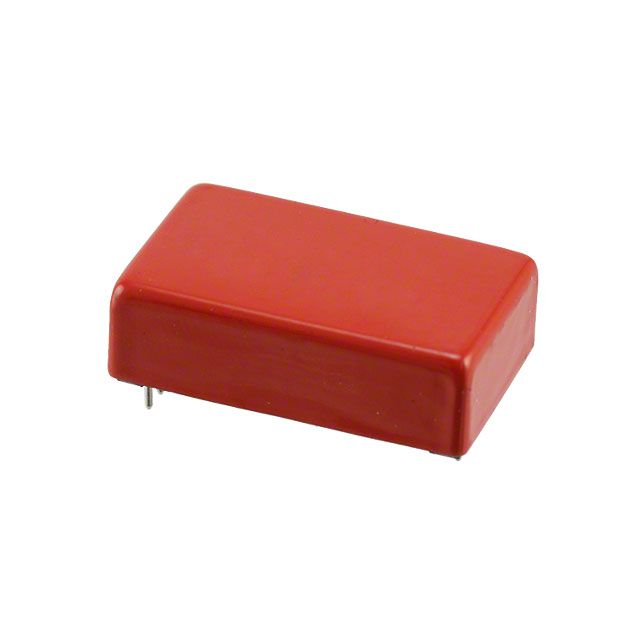

7104-24-1100

Active

Coto Technology

RELAY REED 4PST 500MA 24V

Search across all available documentation for this part.

Active

Coto Technology

RELAY REED 4PST 500MA 24V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Release Time	Coil Resistance	Coil Type	Contact Form	Mounting Type	Switching Voltage	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Contact Rating (Current)	Coil Voltage	Must Release Voltage	Operate Time	Features
Coto Technology 7104-12-1000	PC Pin	0.1 ms	550 Ohms	Non Latching	4PST-NO (4 Form A)	Through Hole	200 VDC 200 VAC	21.8 mA	85 °C	-20 C	9 VDC	0.5 A	12 VDC	1 VDC	1 ms
Coto Technology 7104-12-1011	PC Pin	0.1 ms	550 Ohms	Non Latching	4PST-NO (4 Form A)	Through Hole	200 VDC 200 VAC	21.8 mA	85 °C	-20 C	9 VDC	0.5 A	12 VDC	1 VDC	1 ms	Diode Electrostatic Shield
Coto Technology 7104-24-1010	PC Pin	0.1 ms	2 kOhms	Non Latching	4PST-NO (4 Form A)	Through Hole	200 VDC 200 VAC	12 mA	85 °C	-20 C	18 VDC	0.5 A	24 VDC	2 VDC	1 ms	Electrostatic Shield
Coto Technology 7104-24-1100	PC Pin	0.1 ms	2 kOhms	Non Latching	4PST-NO (4 Form A)	Through Hole	200 VDC 200 VAC	12 mA	85 °C	-20 C	18 VDC	0.5 A	24 VDC	2 VDC	1 ms
Coto Technology 7104-05-1011	PC Pin	0.1 ms	80 Ohms	Non Latching	4PST-NO (4 Form A)	Through Hole	200 VDC 200 VAC	62.5 mA	85 °C	-20 C	3.75 VDC	0.5 A	5 VDC	0.4 VDC	1 ms	Diode Electrostatic Shield
Coto Technology 7104-05-1010	PC Pin	0.1 ms	80 Ohms	Non Latching	4PST-NO (4 Form A)	Through Hole	200 VDC 200 VAC	62.5 mA	85 °C	-20 C	3.75 VDC	0.5 A	5 VDC	0.4 VDC	1 ms	Electrostatic Shield

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED 4PST 500MA 24V
