09162243001
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, 24+PE, LESS CONTACTS, HAN DD HMC SERIES, INSERT, 25 CONTACTS, 6B, PLUG
Deep-Dive with AI
Search across all available documentation for this part.
09162243001
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, 24+PE, LESS CONTACTS, HAN DD HMC SERIES, INSERT, 25 CONTACTS, 6B, PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09162243001 |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | Han® High Temp |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 6B |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09162243 Series

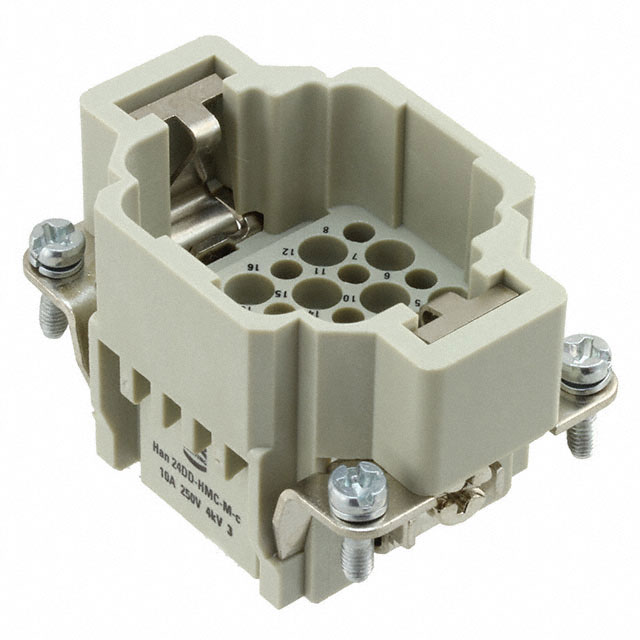

The 09162243001 from Harting is a 6 B size, Han® 24 DD HMC (High Mating Cycles) male insert with crimp termination. Suitable for hoods/housings of Han® B HMC series.
