AB961

Active

Assmann WSW Components

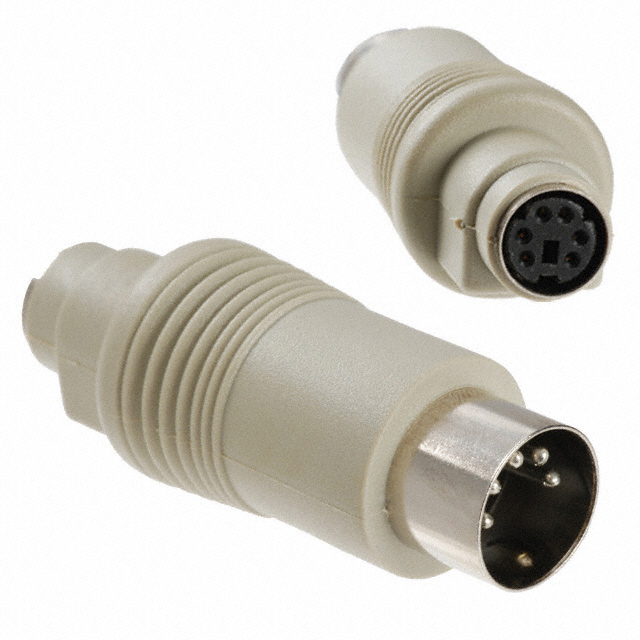

CONN KEYBOARD ADAPTER 6P-5P F-M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AB961

Active

Assmann WSW Components

CONN KEYBOARD ADAPTER 6P-5P F-M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AB961

Connector Style	Keyboard Adapter
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Male Pins
Fastening Type	Push-Pull
Housing Color	Beige
Housing Material	Polyvinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	6
Number of Positions (Convert To)	5
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Shell Size - Insert (Convert From)	MiniDIN, PS/2
Shell Size - Insert (Convert To) [custom]	DIN
Shielding	Shielded

- Series

Part	Number of Positions	Accessory Type	Shielding	Color	2nd Connector Mounting Type	Usage	1st Connector Type	1st Connector Mounting Type	Cable Type	Length	Length	2nd Connector Type	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Rows	Pitch - Cable [x]	Pitch - Cable	Connector Type	Cable Termination	Connector Style	Convert To (Adapter End)	Orientation (Convert To)	Fastening Type	Shell Size - Insert (Convert From)	Number of Positions (Convert From)	Mounting Type	Housing Color	Shell Size - Insert (Convert To) [custom]	Convert From (Adapter End)	Housing Material	Number of Positions (Convert To)	Orientation (Convert From)	Length [x]	Length [x]
Assmann WSW Components AB772	50	Terminator
Assmann WSW Components AK639-3-R			Shielded	Black	Free Hanging (In-Line)	Multi Media	DVI-D Single Link Male	Free Hanging (In-Line) Mating Hardware	Round	9.8 ft	3 m
Assmann WSW Components AK621N-R			Shielded	Black	Free Hanging (In-Line) Mating Hardware	Digital Visual Interface	DVI-D Dual Link Male	Free Hanging (In-Line) Mating Hardware	Round			DVI-D Dual Link Male
Assmann WSW Components AKATA	40		Unshielded							1.97 ft	600 mm		0.05 in	1.27 mm	Gold	2	0.025 in	0.64 mm	Socket to Socket (3)	IDC
Assmann WSW Components AK639-10-R			Shielded	Black	Free Hanging (In-Line)	Multi Media	DVI-D Single Link Male	Free Hanging (In-Line) Mating Hardware	Round
Assmann WSW Components AK620N-3-R			Shielded	Black	Free Hanging (In-Line) Mating Hardware	Digital Visual Interface	DVI-D Single Link Male	Free Hanging (In-Line) Mating Hardware	Round	9.8 ft	3 m	DVI-D Single Link Male
Assmann WSW Components AB961			Shielded																		Keyboard Adapter	Male Pins	Keyed	Push-Pull	MiniDIN PS/2	6	Free Hanging (In-Line)	Beige	DIN	Female Sockets	Polyvinyl Chloride (PVC)	5	Keyed
Assmann WSW Components AK639-5-R			Shielded	Black	Free Hanging (In-Line)	Multi Media	DVI-D Single Link Male	Free Hanging (In-Line) Mating Hardware	Round	16.4 '	5 m
Assmann WSW Components AK639-2-R			Shielded	Black	Free Hanging (In-Line)	Multi Media	DVI-D Single Link Male	Free Hanging (In-Line) Mating Hardware	Round																									6.6 ft	2 m
Assmann WSW Components AB771	50	Terminator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.41
		10	$ 2.19
		30	$ 2.07
		50	$ 2.02
		100	$ 1.93
		250	$ 1.70

Description

General part information

- Series

Circular Connector Keyboard Adapter 6/5 Female Sockets/Male Pins Free Hanging (In-Line)

Documents

Technical documentation and resources
