Q5-F4X-5/8-01-QB48IN-5

Active

Qualtek

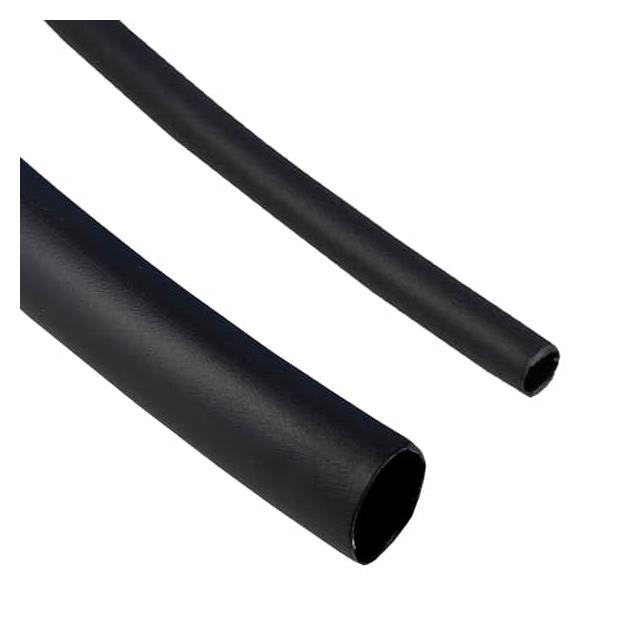

HEATSHRINK 5/8"-48" BLACK

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 5/8"-48" BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	Q5-F4X-5/8-01-QB48IN-5

Color	Black
Features	Adhesive Lined
Inner Diameter - Recovered [diameter]	3.99 mm
Inner Diameter - Recovered [diameter]	0.157 in
Inner Diameter - Supplied [diameter]	16 mm
Inner Diameter - Supplied [diameter]	0.63 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness [custom]	0.063 "
Recovered Wall Thickness [custom]	1.6 mm
Shelf Life	60 Months
Shrink Temperature	70 °C
Shrinkage Ratio	4 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Color	Length [x]	Length [x]	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Shrink Temperature	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Features	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Length
Qualtek Q5-F4X-5/8-01-QB48IN-5	Black	1.22 m	4 ft	4 to 1	3.99 mm	0.157 in	0.063 "	1.6 mm	70 °C	-50 °F -10 °C	40 °C	Polyolefin (PO)	-55 °C	125 °C	60 Months	Adhesive Lined	Tubing Flexible	16 mm	0.63 in
Qualtek Q5-F4X-5/8-01-QB6IN-14	Black			4 to 1	3.99 mm	0.157 in	0.063 "	1.6 mm	70 °C	-50 °F -10 °C	40 °C	Polyolefin (PO)	-55 °C	125 °C	60 Months	Adhesive Lined	Tubing Flexible	16 mm	0.63 in	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Flexible 0.630" (16.00mm) 4 to 1 Black 4.00' (1.22m)
