LXZ1-2780-5

Active

Lumileds

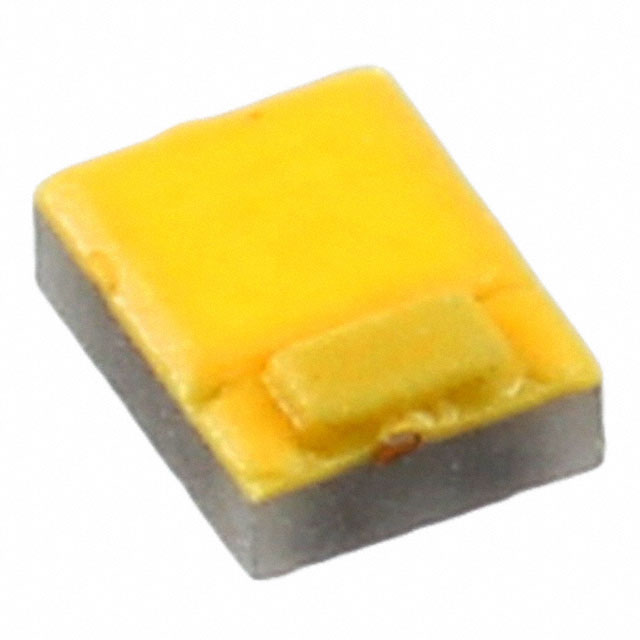

LED LUXEON WARM WHT 2700K SMD

Search across all available documentation for this part.

Active

Lumileds

LED LUXEON WARM WHT 2700K SMD

Technical Specifications

Parameters and characteristics for this part

Specification	LXZ1-2780-5

CCT (K)	2700 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	1 A
Current - Test	500 mA
Flux @ 85°C, Current - Test	115 lm
Height - Seated (Max) [Max]	0.79 mm
Height - Seated (Max) [Max]	0.031 in
Lumens/Watt @ Current - Test	82 lm/W
Mounting Type	Surface Mount
Package / Case	0705
Size / Dimension [x]	0.067 in
Size / Dimension [x]	1.7 mm
Size / Dimension [y]	0.051 "
Size / Dimension [y]	1.3 mm
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	3 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.8 V

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Wavelength	Temperature - Test	Lumens/Watt @ Current - Test	Current - Max [Max]	Package / Case	Supplier Device Package	Mounting Type	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Viewing Angle	Color	Thermal Resistance of Package [diameter]	Flux @ 85°C, Current - Test	CRI (Color Rendering Index)	CCT (K)	Wavelength [Min]	Wavelength [Max]
Lumileds LXZ1-PH02	0.051 "	0.067 in	1.7 mm	1.3 mm	500 mA	0.96 mm	0.038 in	619 nm	85 °C	42 lm/W	1 A	0705	0705	Surface Mount	47 lm	2.2 V	145 °	Red-Orange
Lumileds LXZ1-2780-5	0.051 "	0.067 in	1.7 mm	1.3 mm	500 mA	0.79 mm	0.031 in			82 lm/W	1 A	0705	SMD	Surface Mount		2.8 V	120 °	Warm White	3 °C/W	115 lm	80	2700 K
Lumileds LXZ1-3580-3	0.051 "	0.067 in	1.7 mm	1.3 mm	500 mA	0.79 mm	0.031 in			89 lm/W	1 A	0705	SMD	Surface Mount		2.8 V	120 °	Warm White	3 °C/W	124 lm	80	3500 K
Lumileds LXZ1-PX01	0.051 "	0.067 in	1.7 mm	1.3 mm	500 mA	0.66 mm	0.026 in		85 °C	123 lm/W	700 mA	0705	SMD	Surface Mount	175 lm	2.85 V	125 °	Lime					566 nm	569 nm
Lumileds LXZ1-4080-5	0.051 "	0.067 in	1.7 mm	1.3 mm	500 mA	0.79 mm	0.031 in			93 lm/W	1 A	0705	SMD	Surface Mount		2.8 V	120 °	Neutral White	3 °C/W	130 lm	80	4000 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LUXEON Z White, Warm 2700K 5-Step MacAdam Ellipse 2.8V 500mA 120° 0705 (1713 Metric)
