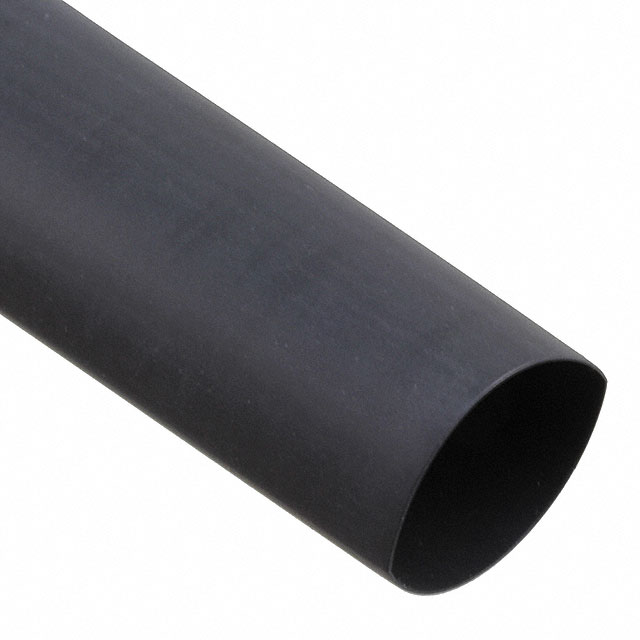

VFP-3/32-6"-BLACK-10-10 PC PKS

Unknown

3M (TC)

HEATSHRINK 3/32 BK 10 6"PC 1=1PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet VFP-876 Tubing

VFP-3/32-6"-BLACK-10-10 PC PKS

Unknown

3M (TC)

HEATSHRINK 3/32 BK 10 6"PC 1=1PC

Deep-Dive with AI

DocumentsDatasheet VFP-876 Tubing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VFP-3/32-6"-BLACK-10-10 PC PKS

Color	Black
Features	Corrosion Resistant, Self Extinguishing, Flame Retardant
Inner Diameter - Recovered [diameter]	1.17 mm
Inner Diameter - Recovered [diameter]	0.046 in
Inner Diameter - Supplied [diameter]	0.093 in
Inner Diameter - Supplied [diameter]	2.36 mm
Length	152.4 mm
Length	6 "
Length	0.5 '
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.02 in
Recovered Wall Thickness	0.51 mm
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	100 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Flexible

VFP Series

Part	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Features	Shrink Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Type	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life Start	Material	Shelf Life	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Inner Diameter - Supplied [diameter]	Length	Length	Length	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Inner Diameter - Recovered
3M (TC) VFP-1-48"-BLACK-5 PCS	Black	27 °C 80 °F	10 °C	1 in	25.4 mm	1.22 m	4 ft	0.5 in	12.7 mm	Corrosion Resistant Flame Retardant Self Extinguishing	100 °C	135 °C	-55 °C	2 to 1	Tubing Flexible	0.89 mm	0.035 in	Date of Manufacture	Polyolefin (PO)	120 Months
3M (TC) VFP-1/2-48"-BLACK-12 PCS	Black	27 °C 80 °F	10 °C	0.5 in	12.7 mm	1.22 m	4 ft	0.25 in	6.35 mm	Corrosion Resistant Flame Retardant Self Extinguishing	100 °C	135 °C	-55 °C	2 to 1	Tubing Flexible			Date of Manufacture	Polyolefin (PO)	120 Months	0.025 "	0.64 mm
3M (TC) VFP-1/8-48"-BLACK-25 PCS	Black	27 °C 80 °F	10 °C	0.125 "	3.18 mm	1.22 m	4 ft	0.062 in	1.57 mm	Corrosion Resistant Flame Retardant Self Extinguishing	100 °C	135 °C	-55 °C	2 to 1	Tubing Flexible	0.51 mm	0.02 in	Date of Manufacture	Polyolefin (PO)	120 Months
3M (TC) VFP-1/2-48"-BLACK-100 PCS	Black	27 °C 80 °F	10 °C	0.5 in	12.7 mm	1.22 m	4 ft	0.25 in	6.35 mm	Corrosion Resistant Flame Retardant Self Extinguishing	100 °C	135 °C	-55 °C	2 to 1	Tubing Flexible			Date of Manufacture	Polyolefin (PO)	120 Months	0.025 "	0.64 mm
3M (TC) VFP-3/32-6"-BLACK-10-10 PC PKS	Black	27 °C 80 °F	10 °C		0.093 in			0.046 in	1.17 mm	Corrosion Resistant Flame Retardant Self Extinguishing	100 °C	135 °C	-55 °C	2 to 1	Tubing Flexible	0.51 mm	0.02 in	Date of Manufacture	Polyolefin (PO)	120 Months			2.36 mm	152.4 mm	6 "	0.5 '
3M (TC) VFP-3/64-48"-BLACK-25 PCS	Black	27 °C 80 °F	10 °C	0.046 in	1.17 mm	1.22 m	4 ft		0.023 in	Corrosion Resistant Flame Retardant Self Extinguishing	100 °C	135 °C	-55 °C	2 to 1	Tubing Flexible	0.41 mm	0.016 "	Date of Manufacture	Polyolefin (PO)	120 Months							0.58 mm
3M (TC) VFP-1/16-6"-BLACK-10-10 PC PKS	Black	27 °C 80 °F	10 °C	0.063 in	1.6 mm			0.031 in	0.79 mm	Corrosion Resistant Flame Retardant Self Extinguishing	100 °C	135 °C	-55 °C	2 to 1	Tubing Flexible	0.43 mm	0.017 in	Date of Manufacture	Polyolefin (PO)	120 Months				152.4 mm	6 "	0.5 '
3M (TC) VFP-3/32-48"-BLACK-250 PCS	Black	27 °C 80 °F	10 °C		0.093 in	1.22 m	4 ft	0.046 in	1.17 mm	Corrosion Resistant Flame Retardant Self Extinguishing	100 °C	135 °C	-55 °C	2 to 1	Tubing Flexible	0.51 mm	0.02 in	Date of Manufacture	Polyolefin (PO)	120 Months			2.36 mm
3M (TC) VFP-3/16-6"-BLACK-10-10 PC PKS	Black	27 °C 80 °F	10 °C	0.187 in	4.75 mm					Corrosion Resistant Flame Retardant Self Extinguishing	100 °C	135 °C	-55 °C	2 to 1	Tubing Flexible	0.51 mm	0.02 in	Date of Manufacture	Polyolefin (PO)	120 Months				152.4 mm	6 "	0.5 '		2.36 mm	0.093 in
3M (TC) VFP-1/8-6"-BLACK-10-10 PC PKS	Black	27 °C 80 °F	10 °C	0.125 "	3.18 mm			0.062 in	1.57 mm	Corrosion Resistant Flame Retardant Self Extinguishing	100 °C	135 °C	-55 °C	2 to 1	Tubing Flexible	0.51 mm	0.02 in	Date of Manufacture	Polyolefin (PO)	120 Months				152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VFP Series

Heat Shrink Tubing, Flexible 0.093" (2.36mm) 2 to 1 Black 0.500' (152.40mm, 6.00")
