Q-0805B0008001M

Active

Amphenol Custom Cable

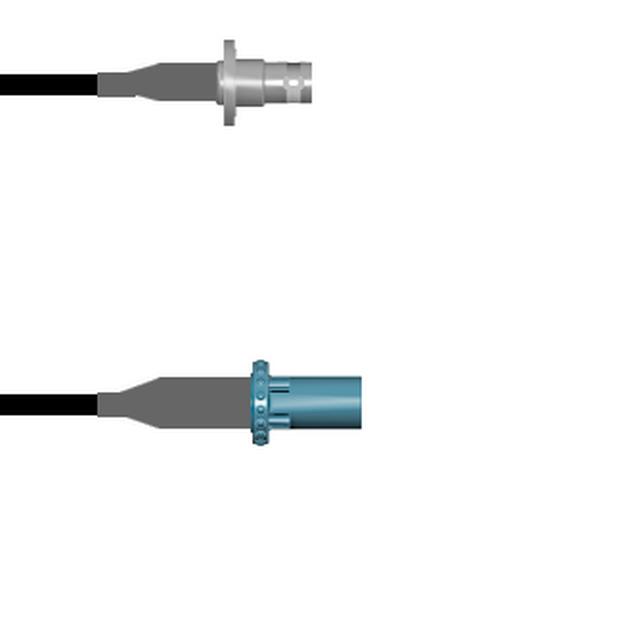

CBL ASSY BNC-FAKRA JACK-PLG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0805B0008001M

Active

Amphenol Custom Cable

CBL ASSY BNC-FAKRA JACK-PLG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0805B0008001M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Fakra Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to Fakra

Q-0805B0 Series

Part	Overall Impedance	2nd Connector Mounting Type	1st Contact Gender	Color	Features	Length	Length	Length	Frequency - Max [Max]	1st Connector	Style	1st Connector Mounting Feature	2nd Contact Gender	2nd Connector	1st Connector Mounting Type	Cable Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0805B0008003M	50 Ohms	Free Hanging (In-Line)	Female	Black	Shielded	3 m	118.1 in	9.8 '	3 GHz	BNC Jack	BNC to Fakra	Bulkhead - Front Side Nut	Male	Fakra Plug	Panel Mount	RG-58
Amphenol Custom Cable Q-0805B0008048i	50 Ohms	Free Hanging (In-Line)	Female	Black	Shielded	1200 mm	48 in	4 ft	3 GHz	BNC Jack	BNC to Fakra	Bulkhead - Front Side Nut	Male	Fakra Plug	Panel Mount	RG-58
Amphenol Custom Cable Q-0805B0008006i	50 Ohms	Free Hanging (In-Line)	Female	Black	Shielded	152.4 mm	6 in		3 GHz	BNC Jack	BNC to Fakra	Bulkhead - Front Side Nut	Male	Fakra Plug	Panel Mount	RG-58
Amphenol Custom Cable Q-0805B0008018i	50 Ohms	Free Hanging (In-Line)	Female	Black	Shielded				3 GHz	BNC Jack	BNC to Fakra	Bulkhead - Front Side Nut	Male	Fakra Plug	Panel Mount	RG-58	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0805B0008.25M	50 Ohms	Free Hanging (In-Line)	Female	Black	Shielded				3 GHz	BNC Jack	BNC to Fakra	Bulkhead - Front Side Nut	Male	Fakra Plug	Panel Mount	RG-58		250 mm	9.843 "
Amphenol Custom Cable Q-0805B0008084i	50 Ohms	Free Hanging (In-Line)	Female	Black	Shielded	2.1 m	84 in	7 ft	3 GHz	BNC Jack	BNC to Fakra	Bulkhead - Front Side Nut	Male	Fakra Plug	Panel Mount	RG-58
Amphenol Custom Cable Q-0805B0008001M	50 Ohms	Free Hanging (In-Line)	Female	Black	Shielded	1 m	39.4 in	3.3 ft	3 GHz	BNC Jack	BNC to Fakra	Bulkhead - Front Side Nut	Male	Fakra Plug	Panel Mount	RG-58
Amphenol Custom Cable Q-0805B0008012i	50 Ohms	Free Hanging (In-Line)	Female	Black	Shielded	304.8 mm	12 "		3 GHz	BNC Jack	BNC to Fakra	Bulkhead - Front Side Nut	Male	Fakra Plug	Panel Mount	RG-58
Amphenol Custom Cable Q-0805B0008009i	50 Ohms	Free Hanging (In-Line)	Female	Black	Shielded	228.6 mm	9 "		3 GHz	BNC Jack	BNC to Fakra	Bulkhead - Front Side Nut	Male	Fakra Plug	Panel Mount	RG-58
Amphenol Custom Cable Q-0805B0008060i	50 Ohms	Free Hanging (In-Line)	Female	Black	Shielded	1.5 m	5 '	5 ft	3 GHz	BNC Jack	BNC to Fakra	Bulkhead - Front Side Nut	Male	Fakra Plug	Panel Mount	RG-58

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 72.31
		25	$ 70.90
		50	$ 69.49
		100	$ 68.08
		250	$ 66.67

Description

General part information

Q-0805B0 Series

Cable Assembly Coaxial BNC to Fakra RG-58 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
