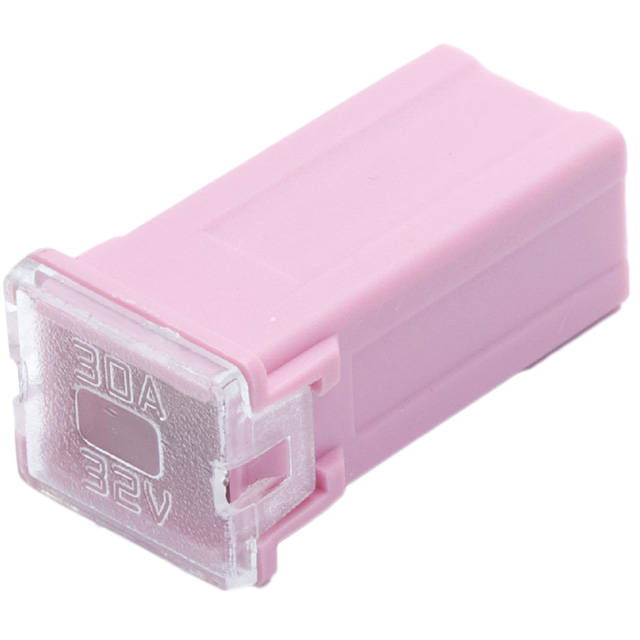

FMX-30A

Active

OptiFuse

FUSE AUTO 30A 32VDC AUTO LINK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FMX-30A

Active

OptiFuse

FUSE AUTO 30A 32VDC AUTO LINK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FMX-30A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Pink
Current Rating (Amps)	30 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Auto Link
Response Time	Fast Blow
Size / Dimension [x]	0.559 in
Size / Dimension [x]	14.2 mm
Size / Dimension [y]	12.2 mm
Size / Dimension [y]	0.48 in
Size / Dimension [z]	27.3 mm
Size / Dimension [z]	1.075 in
Voltage Rating - DC	32 V

FMX Series

Part	Response Time	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Color	Approval Agency	Fuse Type	Breaking Capacity @ Rated Voltage	Mounting Type	Current Rating (Amps)	Package / Case	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]
OptiFuse FMX-I-30A	Fast Blow	27.3 mm	0.559 in	12.2 mm	0.48 in	14.2 mm	1.075 in	Pink	ISO SAE	Automotive	1 kA	Requires Holder	30 A	Auto Link	32 V
OptiFuse FMX-LP-I-25A	Fast Blow	16.5 mm	0.559 in	12.1 mm	0.476 in	14.2 mm	0.65 in		ISO SAE	Automotive	1 kA	Requires Holder	25 A	Auto Link	32 V
OptiFuse FMX-LP-60A	Fast Blow	15.9 mm	0.555 "	12 mm	0.472 "	14.1 mm	0.626 in	Yellow		Automotive	1 kA	Requires Holder	60 A	Auto Link	58 VDC	125 °C	-40 °C
OptiFuse FMX-LP-50A	Fast Blow	15.9 mm	0.555 "	12 mm	0.472 "	14.1 mm	0.626 in	Red		Automotive	1 kA	Requires Holder	50 A	Auto Link	58 VDC	125 °C	-40 °C
OptiFuse FMX-LP-I-20A	Fast Blow	16.5 mm	0.559 in	12.1 mm	0.476 in	14.2 mm	0.65 in	Light Blue	ISO SAE	Automotive	1 kA	Requires Holder	20 A	Auto Link	32 V
OptiFuse FMX-LP-I-30A	Fast Blow	16.5 mm	0.559 in	12.1 mm	0.476 in	14.2 mm	0.65 in	Pink	ISO SAE	Automotive	1 kA	Requires Holder	30 A	Auto Link	32 V
OptiFuse FMX-LP-40A	Fast Blow	15.9 mm	0.555 "	12 mm	0.472 "	14.1 mm	0.626 in	Green		Automotive	1 kA	Requires Holder	40 A	Auto Link	58 VDC	125 °C	-40 °C
OptiFuse FMX-I-60A	Fast Blow	27.3 mm	0.559 in	12.2 mm	0.48 in	14.2 mm	1.075 in	Yellow	ISO SAE	Automotive	1 kA	Requires Holder	60 A	Auto Link	32 V
OptiFuse FMX-30A	Fast Blow	27.3 mm	0.559 in	12.2 mm	0.48 in	14.2 mm	1.075 in	Pink	ISO SAE	Automotive	1 kA	Requires Holder	30 A	Auto Link	32 V
OptiFuse FMX-M-15A	Fast Blow	6.2 mm	0.42 in	15 mm	0.59 in	10.7 mm	0.24 "	Gray		Automotive	1 kA	Requires Holder	15 A	Auto Link	58 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.85
		10	$ 3.75
		25	$ 3.64
		50	$ 3.07
		100	$ 2.51
		250	$ 2.27
		500	$ 1.90
		1000	$ 1.66

Description

General part information

FMX Series

30 A AC 32 V DC Fuse Automotive Requires Holder Auto Link
