Q-0300V0005036i

Active

Amphenol Custom Cable

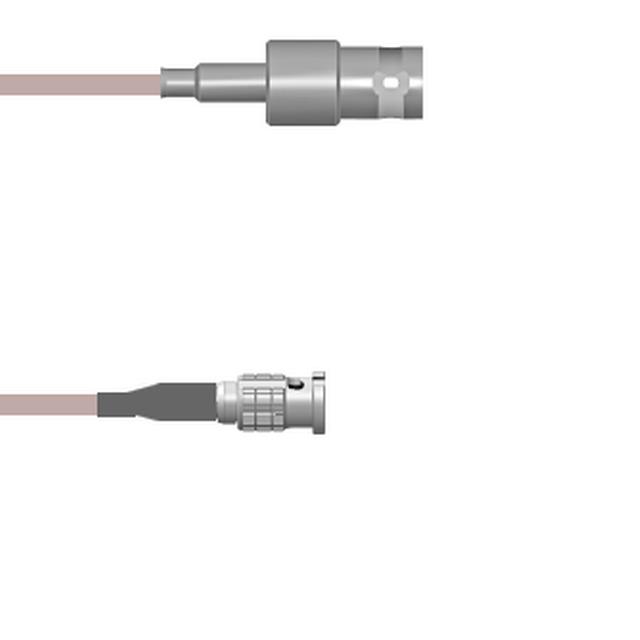

CBL ASSY BNC-HDBNC JACK-PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0300V0005036i

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC JACK-PLUG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0300V0005036i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	HD-BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	BNC to HD-BNC

Q-0300V0 Series

Part	2nd Contact Gender	Length	Length	Length	2nd Connector	Overall Impedance	Style	1st Contact Gender	1st Connector	2nd Connector Mounting Type	Color	1st Connector Mounting Type	Cable Type	Features	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-0300V0005048i	Male	1200 mm	4 ft	48 in	HD-BNC Plug	50 Ohms	BNC to HD-BNC	Female	BNC Jack	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)	RG-316	Shielded	4 GHz
Amphenol Custom Cable Q-0300V0003003M	Male	3 m	9.8 '	118.1 in	HD-BNC Plug	50 Ohms	BNC to HD-BNC	Female	BNC Jack	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	RG-174	Shielded	4 GHz
Amphenol Custom Cable Q-0300V00051.5M	Male	1.5 m	4.9 ft	59.1 in	HD-BNC Plug	50 Ohms	BNC to HD-BNC	Female	BNC Jack	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)	RG-316	Shielded	4 GHz
Amphenol Custom Cable Q-0300V0005.75M	Male	750 mm		29.53 "	HD-BNC Plug	50 Ohms	BNC to HD-BNC	Female	BNC Jack	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)	RG-316	Shielded	4 GHz
Amphenol Custom Cable Q-0300V0003036i	Male	91.44 cm		36 in	HD-BNC Plug	50 Ohms	BNC to HD-BNC	Female	BNC Jack	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	RG-174	Shielded	4 GHz
Amphenol Custom Cable Q-0300V0005072i	Male	1.8 m	6 ft	72 in	HD-BNC Plug	50 Ohms	BNC to HD-BNC	Female	BNC Jack	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)	RG-316	Shielded	4 GHz
Amphenol Custom Cable Q-0300V0005060i	Male	1.5 m	5 ft	5 '	HD-BNC Plug	50 Ohms	BNC to HD-BNC	Female	BNC Jack	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)	RG-316	Shielded	4 GHz
Amphenol Custom Cable Q-0300V0005036i	Male	91.44 cm		36 in	HD-BNC Plug	50 Ohms	BNC to HD-BNC	Female	BNC Jack	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)	RG-316	Shielded	4 GHz
Amphenol Custom Cable Q-0300V0003.25M	Male				HD-BNC Plug	50 Ohms	BNC to HD-BNC	Female	BNC Jack	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	RG-174	Shielded	4 GHz	9.843 "	250 mm
Amphenol Custom Cable Q-0300V0003084i	Male	2.1 m	7 ft	84 in	HD-BNC Plug	50 Ohms	BNC to HD-BNC	Female	BNC Jack	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	RG-174	Shielded	4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.60
		25	$ 80.00
		50	$ 78.39
		100	$ 76.79
		250	$ 75.19

Description

General part information

Q-0300V0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-316 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
