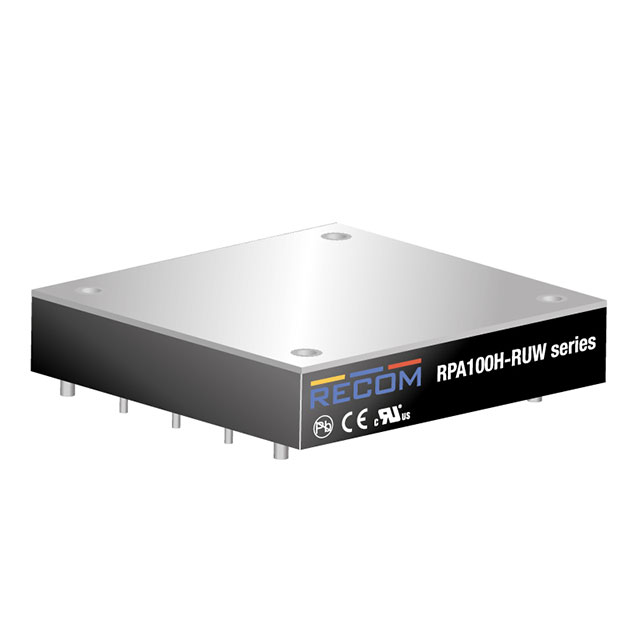

RPA100H-11024SRUW/N

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 100W 16.8-137.5VIN 24VOUT 4.2A HB

Search across all available documentation for this part.

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 100W 16.8-137.5VIN 24VOUT 4.2A HB

Technical Specifications

Parameters and characteristics for this part

Specification	RPA100H-11024SRUW/N

Applications	Railway, ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	4.2 A
Efficiency	88 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	97 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-DIP Module
Power (Watts)	101 W
Type	Isolated Module
Voltage - Input (Max) [Max]	137.5 V
Voltage - Input (Min) [Min]	16.8 V
Voltage - Isolation	4.2 kV
Voltage - Output 1	24 V

Isolated DC/DC Converters - Through Hole 100W 16.8-137.5Vin 12Vout 8.5A HB

Part	Efficiency	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Features	Control Features	Voltage - Isolation	Voltage - Input (Max) [Max]	Applications	Current - Output (Max) [Max]	Type	Number of Outputs	Mounting Type	Voltage - Input (Min) [Min]	Power (Watts)	Supplier Device Package
RECOM Power RPA100H-11024SRUW/N	88 %	10-DIP Module	-40 °C	97 °C	24 V	Adjustable Output Remote On/Off Remote Sense	Active Low Enable	4.2 kV	137.5 V	ITE (Commercial) Railway	4.2 A	Isolated Module	1	Through Hole	16.8 V	101 W
RECOM Power RPA100H-11015SRUW/N	93 %	Half Brick	-40 °C	97 °C	15 V	OCP OTP OVP Remote On/Off UVLO		4.242 kV	140 V	ITE (Commercial) Railway	6.7 A	Isolated Module	1	Through Hole	16.5 V	101 W	Half Brick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - Through Hole 100W 16.8-137.5Vin 12Vout 8.5A HB
