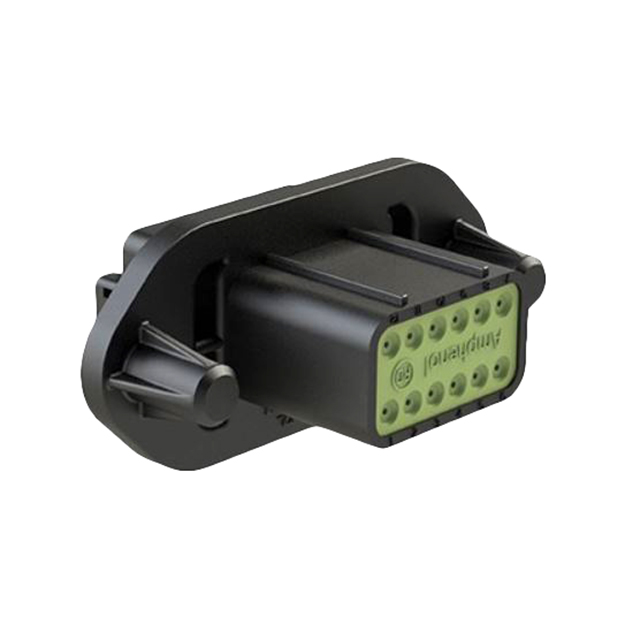

AT04-12PB-PM12

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 12POS PANEL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Family Datasheet +1

AT04-12PB-PM12

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 12POS PANEL MNT

Deep-Dive with AI

DocumentsA Series Family Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-12PB-PM12

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed, Mounting Flange
Insulation Material	Thermoplastic
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-12PB Series

Part	Features	Fastening Type	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows	Note	Insulation Material	Contact Termination	Connector Type	Number of Positions	Cable Termination	Contact Finish	Wire Type	Termination	Current Rating (Amps)	Style	Ingress Protection	Contact Material	Contact Shape	Shrouding	Insulation Height	Insulation Height	Applications	Number of Positions Loaded	Insulation Color	Contact Finish - Mating
Amphenol Sine Systems Corp AT04-12PB-EC01	Cap (Cover)	Latch Holder	Free Hanging (In-Line)	Black	-55 °C	125 °C	Male Pin	2	Contacts Not Included	Thermoplastic	Crimp	Receptacle	12
Amphenol Sine Systems Corp AT04-12PB-L012	Mounting Flange Sealed	Latch Holder		Black	-55 °C	125 °C	Male Pin	2	Contacts Not Included	Thermoplastic	Crimp	Receptacle	12
Amphenol Sine Systems Corp AT04-12PB-PM14	Cap (Cover) Mounting Flange Sealed	Latch Holder		Black	-55 °C	125 °C	Male Pin	2	Contacts Not Included	Thermoplastic	Crimp	Receptacle	12
Amphenol Sine Systems Corp AT04-12PB-P021	Cap (Cover) IP67 Sealed	Latch Holder	Free Hanging (In-Line)	Black			Male Pin	2				Receptacle	12	Crimp	Nickel	Discrete
Amphenol Sine Systems Corp AT04-12PB-BM03		Latch Holder	Through Hole		-55 °C	125 °C	Male Pin	2		Thermoplastic		Receptacle	12				Solder	13 A	Board to Cable/Wire	IP67	Copper Alloy	Circular	Shrouded - 4 Wall	0.835 "	21.21 mm	Automotive General Purpose Industrial	All	Black	Nickel
Amphenol Sine Systems Corp AT04-12PB-P026	Cap (Cover) IP67 Sealed	Latch Holder	Free Hanging (In-Line)	Black			Male Pin	2				Receptacle	12	Crimp	Nickel	Discrete
Amphenol Sine Systems Corp AT04-12PB-PM13	Cap (Cover) Mounting Flange Sealed	Latch Holder		Black	-55 °C	125 °C	Male Pin	2	Contacts Not Included	Thermoplastic	Crimp	Receptacle	12
Amphenol Sine Systems Corp AT04-12PB-PM12	Mounting Flange Sealed	Latch Holder		Black	-55 °C	125 °C	Male Pin	2	Contacts Not Included	Thermoplastic	Crimp	Receptacle	12
Amphenol Sine Systems Corp AT04-12PB-CL03	Mounting Flange Sealed	Latch Holder		Black	-55 °C	125 °C	Male Pin	2	Contacts Not Included	Thermoplastic	Crimp	Receptacle	12
Amphenol Sine Systems Corp AT04-12PB-BM04		Latch Holder	Through Hole		-55 °C	125 °C	Male Pin	2		Thermoplastic		Receptacle	12				Solder	13 A	Board to Cable/Wire	IP67	Copper Alloy	Circular	Shrouded - 4 Wall	0.835 "	21.21 mm	Automotive General Purpose Industrial	All	Black	Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.86
		10	$ 6.20
		25	$ 5.86
		50	$ 5.72
		150	$ 5.43
		300	$ 4.86
		600	$ 4.57
		1050	$ 4.00
		2550	$ 3.80

Description

General part information

AT04-12PB Series

12 Rectangular Connectors - Housings Receptacle Black

Documents

Technical documentation and resources

A Series Family

Datasheet

PanelMate Family

Datasheet
