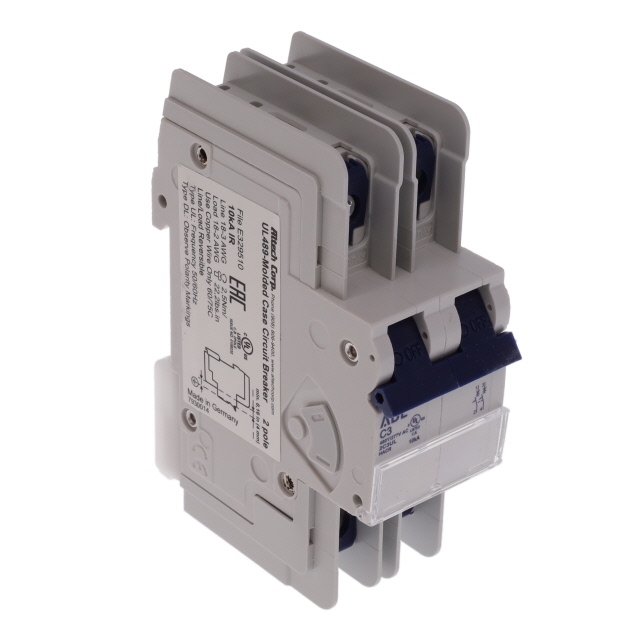

2C3UL
ActiveTE Connectivity Raychem Cable Protection
2C3UL 3A CIRCUIT BREAKER C CHAR2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2C3UL |
|---|---|
| Actuator Type | Lever |
| Approval Agency | UL489, CE, cULus |
| Breaker Type | Thermal Magnetic |
| Current Rating (Amps) | 3 A |
| Illumination | None |
| Mounting Type | DIN Rail |
| Number of Poles | 2 |
| Voltage Rating - AC | 480 V |
2C3 Series
| Part | Illumination | Approval Agency | Number of Poles | Mounting Type | Actuator Type | Voltage Rating - AC | Current Rating (Amps) | Breaker Type |
|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | None | CE cULus UL489 | 2 | DIN Rail | Lever | 480 V | 3 A | Thermal Magnetic |
Altech Corporation | None | CE cULus UL489 | 2 | DIN Rail | Lever | 480 V | 3 A | Thermal Magnetic |
TE Connectivity Raychem Cable Protection | None | CE cURus UL1077 | 2 | DIN Rail | Lever | 480 V | 3 A | Thermal Magnetic |
Altech Corporation | None | CE cURus UL1077 | 2 | DIN Rail | Lever | 480 V | 3 A | Thermal Magnetic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 79.14 | |
| 5 | $ 65.89 | |||
| 10 | $ 60.86 | |||
| 50 | $ 50.54 | |||
| 100 | $ 46.62 | |||
Description
General part information
2C3 Series
Circuit Breaker Thermal Magnetic 3A 480 V AC DC Lever DIN Rail
