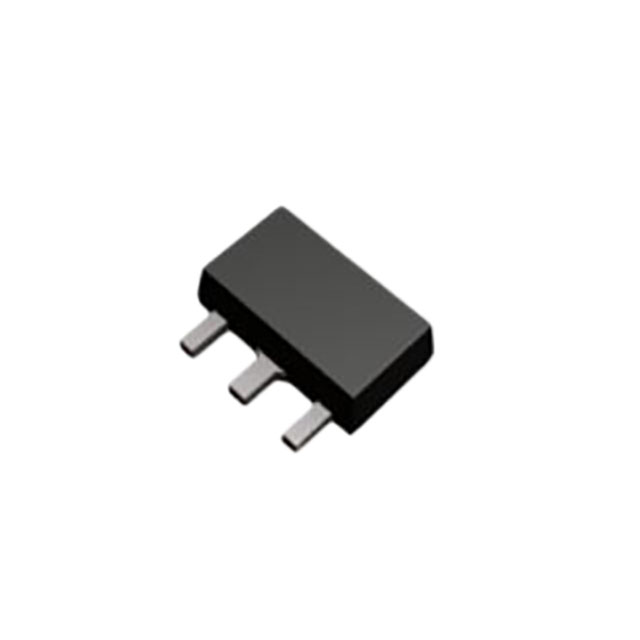

2SAR293PHZGT100
ActiveRohm Semiconductor
PNP, SOT-89, -30V -1A, MIDDLE POWER TRANSISTOR FOR AUTOMOTIVE
Deep-Dive with AI
Search across all available documentation for this part.
2SAR293PHZGT100
ActiveRohm Semiconductor
PNP, SOT-89, -30V -1A, MIDDLE POWER TRANSISTOR FOR AUTOMOTIVE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2SAR293PHZGT100 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 1 A |
| Current - Collector Cutoff (Max) [Max] | 100 nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 270 |
| Frequency - Transition | 320 MHz |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | TO-243AA |
| Power - Max [Max] | 500 mW |
| Qualification | AEC-Q101 |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 350 mV |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.84 | |
| 10 | $ 0.52 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.84 | ||
| 10 | $ 0.52 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.26 | |||
| Tape & Reel (TR) | 1000 | $ 0.23 | ||
| 2000 | $ 0.21 | |||
| 3000 | $ 0.20 | |||
| 5000 | $ 0.19 | |||
| 7000 | $ 0.18 | |||
| 10000 | $ 0.17 | |||
| 25000 | $ 0.16 | |||
| 50000 | $ 0.15 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.69 | |
| 10 | $ 0.53 | |||
| 25 | $ 0.47 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.23 | |||
Description
General part information
2SAR293PHZG Series
2SAR293PHZG is Low VCE(sat)Middle Power Driver Transistor for Low Frequency Amplifier. It is a highly reliable product for automotive.
Documents
Technical documentation and resources
