M5670 SL005

Active

ALPHA WIRE

MULTI-PAIR 10COND 20AWG

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 10COND 20AWG

Technical Specifications

Parameters and characteristics for this part

Specification	M5670 SL005

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	10.49 mm
Jacket (Insulation) Diameter [diameter]	0.413 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2343
Shield Coverage	70 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	20 AWG

Part	Shield Coverage	Jacket Color	Conductor Material	Voltage	Wire Gauge	Cable Type	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Length [x]	Length [x]	Shield Type	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE M5670 SL005	70 % 100 %	Slate	Copper Tinned	300 V	20 AWG	Multi-Pair	10	-20 C	80 C	Poly-Vinyl Chloride (PVC)	UL Style 2343	1.6 mm	0.063 in	Drain Wire Rip Cord	30.5 m	100 ft	Braid Foil	Aluminum Copper Tinned	28	7	Poly-Vinyl Chloride (PVC)	10.49 mm	0.413 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 5.66

General part information

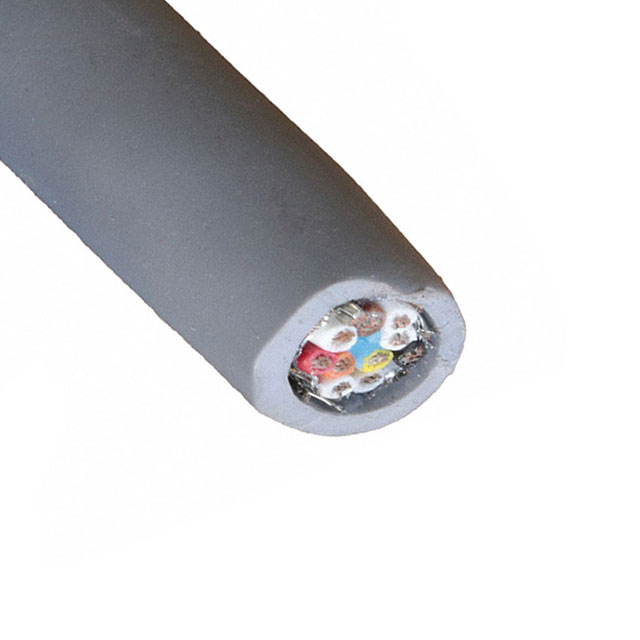

10 (5 Pair Twisted) Conductor Multi-Pair Cable Slate 20 AWG Foil, Braid 100.0' (30.5m)
