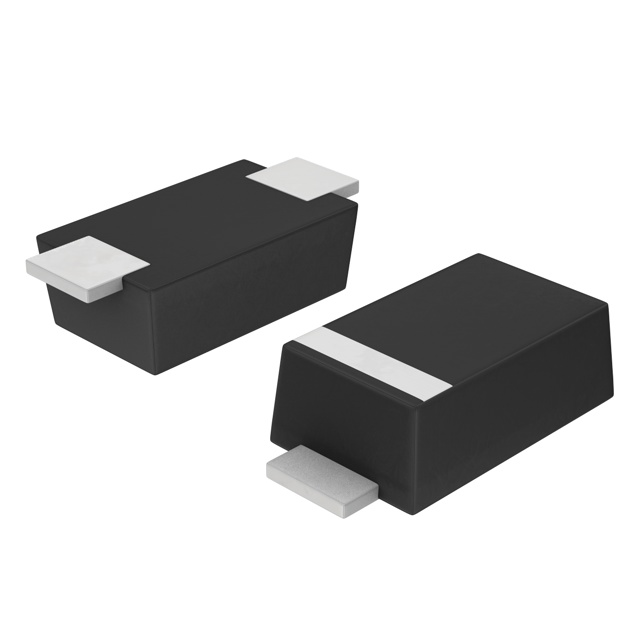

SMF75AT1

Obsolete

ON Semiconductor

TVS DIODE 75VWM 121VC SOD123FL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSMF5.0AT1 Series Datasheet

SMF75AT1

Obsolete

ON Semiconductor

TVS DIODE 75VWM 121VC SOD123FL

Deep-Dive with AI

DocumentsSMF5.0AT1 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMF75AT1

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	1.4 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOD-123F
Power - Peak Pulse	200 W
Power Line Protection	False
Supplier Device Package	SOD-123FL
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	83.3 V
Voltage - Clamping (Max) @ Ipp [Max]	121 V
Voltage - Reverse Standoff (Typ)	75 V

SMF Series

Part	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp [Max]	Type	Unidirectional Channels [custom]	Power - Peak Pulse	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Package / Case	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Mounting Type	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp	Capacitance @ Frequency
ON Semiconductor SMF7.5AT1	7.5 V	12.9 V	Zener	1	200 W	-55 °C	150 °C	General Purpose	SOD-123F	SOD-123FL	8.33 V	Surface Mount
ON Semiconductor SMF10AT1	10 V	17 V	Zener	1	200 W	-55 °C	150 °C	General Purpose	SOD-123F	SOD-123FL	11.1 V	Surface Mount	11.8 A
ON Semiconductor SMF170AT1G	170 V	275 V	Zener	1	200 W	-55 °C	150 °C	General Purpose	SOD-123F	SOD-123FL	189 V	Surface Mount	600 mA
ON Semiconductor SMF5.0AT1	5 V		Zener	1	200 W	-55 °C	150 °C	General Purpose	SOD-123F	SOD-123FL	6.4 V	Surface Mount	21.7 A	9.2 V
ON Semiconductor SMF22AT1	22 V		Zener	1	200 W	-55 °C	150 °C	General Purpose	SOD-123F	SOD-123FL		Surface Mount		35.5 V
ON Semiconductor SMF33AT1	33 V		Zener	1	200 W	-55 °C	150 °C	General Purpose	SOD-123F	SOD-123FL	36.7 V	Surface Mount	3.8 A	53.3 V
ON Semiconductor SMF90AT1	90 V	146 V	Zener	1	200 W	-55 °C	150 °C	General Purpose	SOD-123F	SOD-123FL	100 V	Surface Mount	1.2 A
ON Semiconductor SMF75AT1	75 V	121 V	Zener	1	200 W	-55 °C	150 °C	General Purpose	SOD-123F	SOD-123FL	83.3 V	Surface Mount	1.4 A
ON Semiconductor SMF24AT1	24 V	38.9 V	Zener	1	200 W	-55 °C	150 °C	General Purpose	SOD-123F	SOD-123FL	26.7 V	Surface Mount	5.1 A
ON Semiconductor SMF15CT1	15 V	29 V	Zener	5	100 W	-40 °C	125 ¯C	General Purpose	6-TSSOP SC-88 SOT-363	SC-88 SC70-6 SOT-363	17 V	Surface Mount	5 A		33 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SMF Series

121V Clamp 1.4A Ipp Tvs Diode Surface Mount SOD-123FL

Documents

Technical documentation and resources

SMF5.0AT1 Series

Datasheet
