29K201-40ML5
ActiveRosenberger

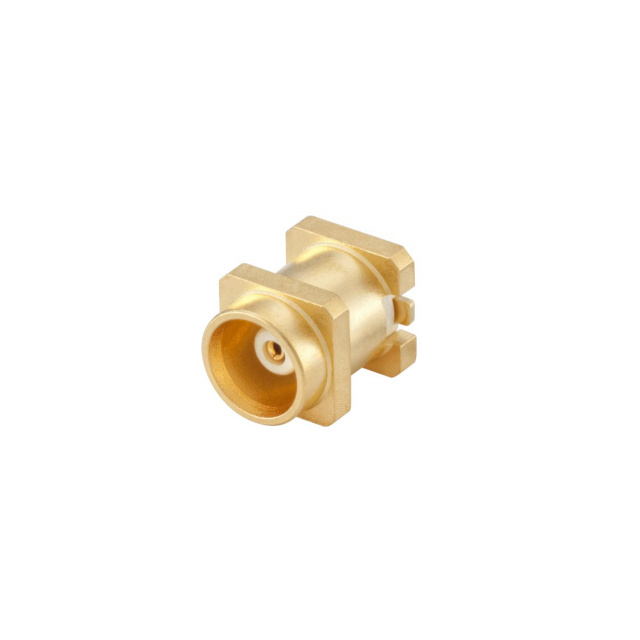

MCX RIGHT ANGLE JACK PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
29K201-40ML5
ActiveRosenberger
MCX RIGHT ANGLE JACK PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 29K201-40ML5 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.06 | |
| 10 | $ 5.48 | |||
| 25 | $ 5.18 | |||
| 50 | $ 5.05 | |||
| 100 | $ 4.80 | |||
| 300 | $ 4.29 | |||
| 500 | $ 4.04 | |||
| 1000 | $ 3.54 | |||
| 2500 | $ 3.36 | |||
Description
General part information
29K201 Series
MCX Connector Jack, Female Socket 50 Ohms Surface Mount, Right Angle Solder
