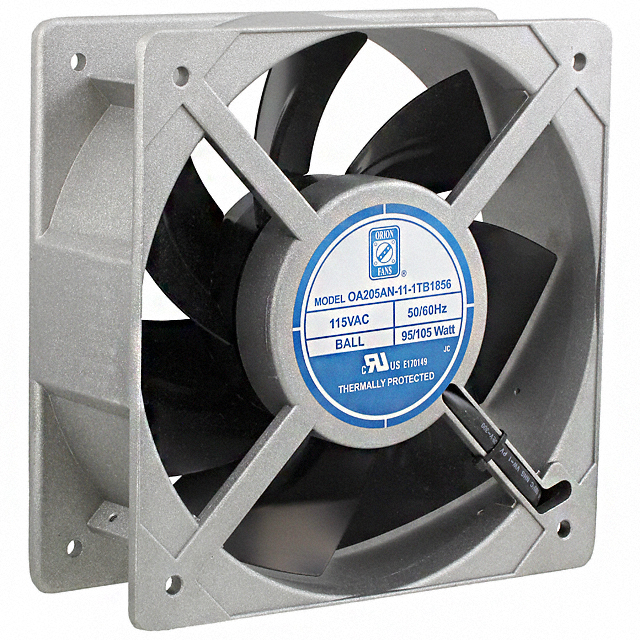

OA205AN-11-1TB1856

Active

Orion Fans

AC AXIAL FAN, 115V, SQUARE, 205 MM, 72 MM, BALL BEARING, 590 CFM

Search across all available documentation for this part.

Active

Orion Fans

AC AXIAL FAN, 115V, SQUARE, 205 MM, 72 MM, BALL BEARING, 590 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	OA205AN-11-1TB1856

Air Flow	16.52 mł/min
Air Flow	590 CFM
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP56 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Metal
Material - Frame	Aluminum
Noise	67 dB
Power (Watts)	80 W
RPM	3000 RPM
Size / Dimension	Square
Size / Dimension [x]	205 mm
Size / Dimension [z]	205 mm
Static Pressure	214.2 Pa
Static Pressure	0.86 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Voltage Range [Max]	120 VAC
Voltage Range [Min]	100 VAC
Weight	5.1 lbs
Weight	2.3 kg
Width [y]	72 mm

Part	Approval Agency	Weight	Weight	Features	Ingress Protection	Air Flow	Air Flow	Voltage - Rated	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Static Pressure	Static Pressure	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Termination	Material - Frame	Power (Watts)	Noise	RPM	Material - Blade	Lifetime @ Temp.	Width [y]
Orion Fans OA205AN-11-1TB1856	CE cURus TUV UR	5.1 lbs	2.3 kg	Capacitor Thermal Overload Protector (TOP)	IP56 - Dust Protected Water Resistant	16.52 mł/min	590 CFM	115 VAC	Square	205 mm	205 mm	214.2 Pa	0.86 in H2O	Tubeaxial	120 VAC	100 VAC	Ball	2 Terminals	Aluminum	80 W	67 dB	3000 RPM	Metal	50000 Hrs	72 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Square - 205mm L x 205mm H Ball 590.0 CFM (16.52mł/min) 2 Terminals
