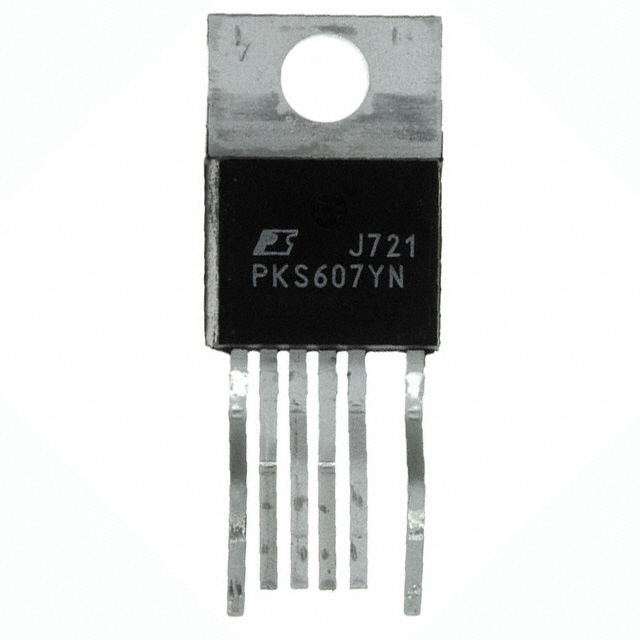

PKS607YN

Obsolete

Power Integrations

IC OFFLINE SW FLYBACK TO220-7C

Search across all available documentation for this part.

Obsolete

Power Integrations

IC OFFLINE SW FLYBACK TO220-7C

Technical Specifications

Parameters and characteristics for this part

Specification	PKS607YN

Control Features	EN
Duty Cycle	65 %
Fault Protection	Current Limiting, Over Load, Over Temperature
Internal Switch(s)	True
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Isolation	Isolated
Package / Case	TO-220-7 Formed Leads, 6 Leads
Power (Watts)	126 W
Supplier Device Package	TO-220-7C
Topology	Flyback
Voltage - Breakdown	700 V

Part	Fault Protection	Package / Case	Voltage - Breakdown	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Supplier Device Package	Power (Watts)	Duty Cycle	Mounting Type	Internal Switch(s)	Output Isolation	Control Features
Power Integrations PKS607YN	Current Limiting Over Load Over Temperature	TO-220-7 Formed Leads 6 Leads	700 V	150 °C	-40 °C	Flyback	TO-220-7C	126 W	65 %	Through Hole		Isolated	EN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Converter Offline Flyback Topology 277kHz TO-220-7C
