LXTBKZMCMG-010
ActiveMurata Power Solutions Inc.

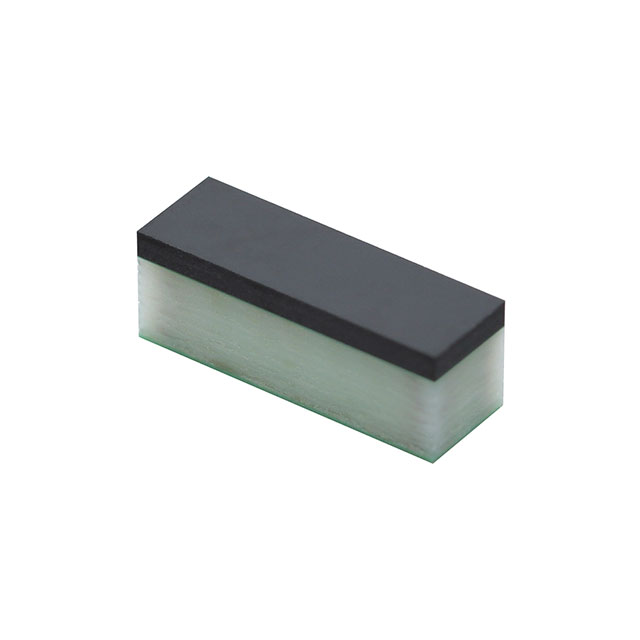

ON-METAL RFID RAIN TAG
Deep-Dive with AI
Search across all available documentation for this part.
LXTBKZMCMG-010
ActiveMurata Power Solutions Inc.
ON-METAL RFID RAIN TAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LXTBKZMCMG-010 |
|---|---|
| Frequency [Max] | 928 MHz |
| Frequency [Min] | 865 MHz |
| Memory Type | Read/Write |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 0.236 in |
| Size / Dimension [x] | 6 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Standards | EPC, ISO 18000-63 |
| Style | Encapsulated |
| Technology | Passive |
| Writable Memory | 64 b, 96 b |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LXTB Series
RFID Tag Read/Write 96b (EPC), 64b (User) Memory 865MHz ~ 928MHz ISO 18000-63, EPC Encapsulated
