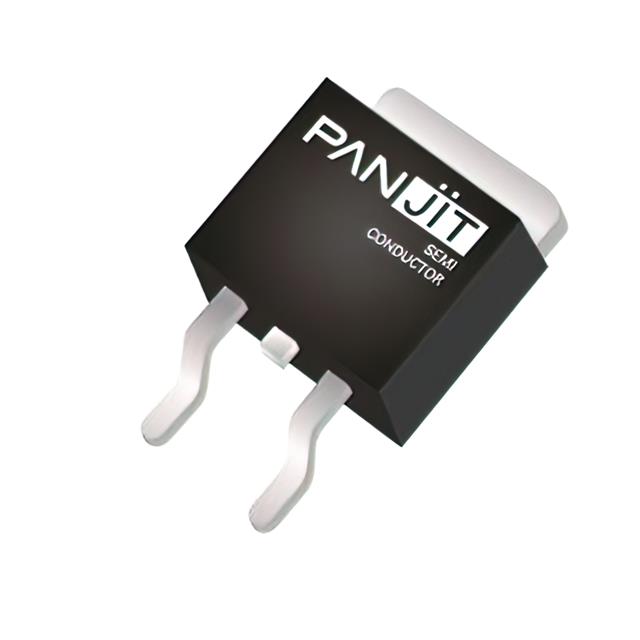

STR30100CB_R2_00001

Unknown

Panjit International Inc.

DIODE ARR SCHOTT 100V 15A TO263

Search across all available documentation for this part.

Unknown

Panjit International Inc.

DIODE ARR SCHOTT 100V 15A TO263

Technical Specifications

Parameters and characteristics for this part

Specification	STR30100CB_R2_00001

Current - Average Rectified (Io) (per Diode)	15 A
Current - Reverse Leakage @ Vr	50 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-263
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	780 mV

Part	Current - Average Rectified (Io) (per Diode)	Speed	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Diode Configuration	Technology	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Current - Reverse Leakage @ Vr
Panjit International Inc. STR30100FCT_T0_00001	15 A	200 mA 500 ns	TO-220-3 Full Pack	100 V	150 °C	-55 °C	Through Hole	1 Pair Common Cathode	Schottky	780 mV	ITO-220AB	50 µA
Panjit International Inc. STR30100CB_R2_00001	15 A	200 mA 500 ns	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	100 V	150 °C	-55 °C	Surface Mount	1 Pair Common Cathode	Schottky	780 mV	TO-263	50 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 100 V 15A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
