TX25-100P-LT-N1E

Active

JAE Electronics

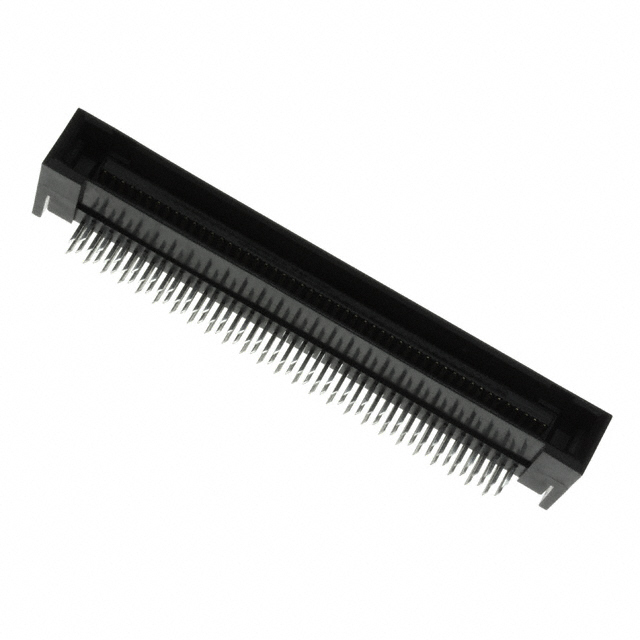

CONN PLUG 100POS R/A GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 100POS R/A GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Mounting Type	Number of Positions	Number of Rows	Mated Stacking Heights	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]
JAE Electronics TX25-100P-8ST-H1E	Gold	Through Hole	100	2	14 mm 18 mm 20 mm	0.441 in	11.2 mm	4 Áin	0.1 Ám	0.05 in	1.27 mm
JAE Electronics TX25-100P-6ST-N1E	Gold	Through Hole	100	2	12 mm 16 mm 18 mm	0.362 in	9.2 mm	4 Áin	0.1 Ám	0.05 in	1.27 mm
JAE Electronics TX25-100P-12ST-H1E	Gold	Through Hole	100	2	18 mm 22 mm 24 mm	0.598 in	15.2 mm	4 Áin	0.1 Ám	0.05 in	1.27 mm
JAE Electronics TX25-100P-LT-N1E	Gold	Through Hole Right Angle	100	2		0.354 in	9 mm	4 Áin	0.1 Ám	0.05 in	1.27 mm
JAE Electronics TX25-100P-LT-H1E	Gold	Through Hole Right Angle	100	2		0.354 in	9 mm	4 Áin	0.1 Ám	0.05 in	1.27 mm
JAE Electronics TX25-100P-8ST-N1E	Gold	Through Hole	100	2	14 mm 18 mm 20 mm	0.441 in	11.2 mm	4 Áin	0.1 Ám	0.05 in	1.27 mm
JAE Electronics TX25-100P-12ST-N1E	Gold	Through Hole	100	2	18 mm 22 mm 24 mm	0.598 in	15.2 mm	4 Áin	0.1 Ám	0.05 in	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	396	$ 2.14

General part information

100 Position Connector Plug, Center Strip Contacts Through Hole, Right Angle Gold
