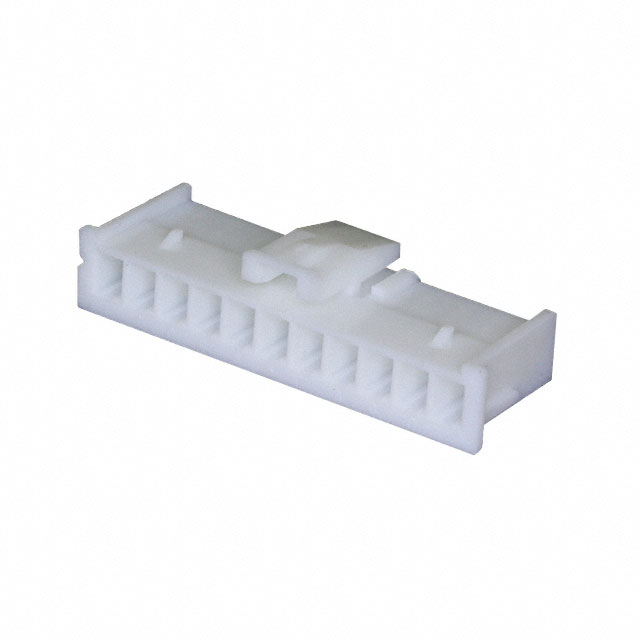

XARP-11V

Active

JST Sales America Inc.

CONN RCPT HSG 11POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

XARP-11V

Active

JST Sales America Inc.

CONN RCPT HSG 11POS 2.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XARP-11V

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	11
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

XARP Series

Part	Mounting Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Contact Type	Contact Termination	Number of Positions	Connector Type	Number of Rows	Note	Color	Insulation Material
JST Sales America Inc. XARP-10V	Free Hanging (In-Line)	Latch Lock	-25 °C	85 °C	0.098 in	2.5 mm	Female Socket	Crimp	10	Receptacle	1	Contacts Not Included	Natural	Polyamide (PA66) Nylon 6/6
JST Sales America Inc. XARP-15V	Free Hanging (In-Line)	Latch Lock	-25 °C	85 °C	0.098 in	2.5 mm	Female Socket	Crimp	15	Receptacle	1	Contacts Not Included	Natural	Polyamide (PA66) Nylon 6/6
JST Sales America Inc. XARP-11V	Free Hanging (In-Line)	Latch Lock	-25 °C	85 °C	0.098 in	2.5 mm	Female Socket	Crimp	11	Receptacle	1	Contacts Not Included	Natural	Polyamide (PA66) Nylon 6/6
JST Sales America Inc. XARP-04V	Free Hanging (In-Line)	Latch Lock	-25 °C	85 °C	0.098 in	2.5 mm	Female Socket	Crimp	4	Receptacle	1	Contacts Not Included	Natural	Polyamide (PA66) Nylon 6/6
JST Sales America Inc. XARP-05V	Free Hanging (In-Line)	Latch Lock	-25 °C	85 °C	0.098 in	2.5 mm	Female Socket	Crimp		Receptacle	1	Contacts Not Included	Natural	Polyamide (PA66) Nylon 6/6
JST Sales America Inc. XARP-09V	Free Hanging (In-Line)	Latch Lock	-25 °C	85 °C	0.098 in	2.5 mm	Female Socket	Crimp	9	Receptacle	1	Contacts Not Included	Natural	Polyamide (PA66) Nylon 6/6
JST Sales America Inc. XARP-12V	Free Hanging (In-Line)	Latch Lock	-25 °C	85 °C	0.098 in	2.5 mm	Female Socket	Crimp	12	Receptacle	1	Contacts Not Included	Natural	Polyamide (PA66) Nylon 6/6
JST Sales America Inc. XARP-03V	Free Hanging (In-Line)	Latch Lock	-25 °C	85 °C	0.098 in	2.5 mm	Female Socket	Crimp		Receptacle	1	Contacts Not Included	Natural	Polyamide (PA66) Nylon 6/6
JST Sales America Inc. XARP-06V	Free Hanging (In-Line)	Latch Lock	-25 °C	85 °C	0.098 in	2.5 mm	Female Socket	Crimp	6	Receptacle	1	Contacts Not Included	Natural	Polyamide (PA66) Nylon 6/6
JST Sales America Inc. XARP-07V	Free Hanging (In-Line)	Latch Lock	-25 °C	85 °C	0.098 in	2.5 mm	Female Socket	Crimp	7	Receptacle	1	Contacts Not Included	Natural	Polyamide (PA66) Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.33
		10	$ 0.28
		25	$ 0.25
		50	$ 0.23
		100	$ 0.22
		250	$ 0.20
		500	$ 0.19
		1000	$ 0.16
		3000	$ 0.14

Description

General part information

XARP Series

11 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
