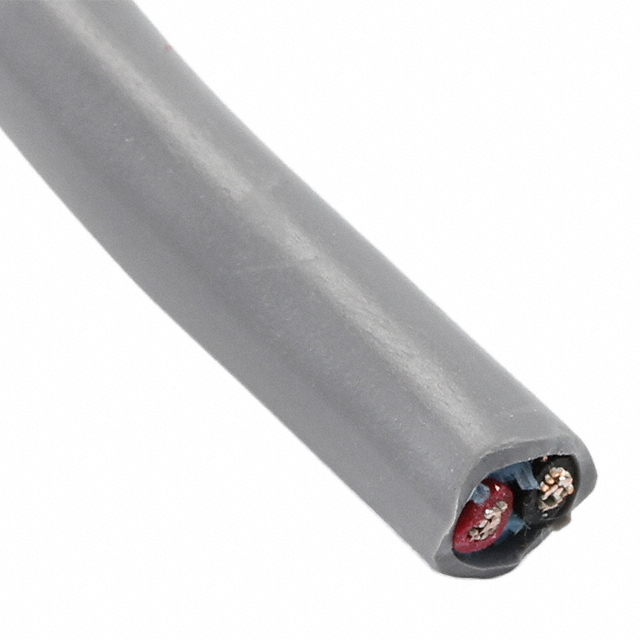

1891C SL001

Active

ALPHA WIRE

CABLE 2COND 14AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 14AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1891C SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.268 in
Jacket (Insulation) Diameter [diameter]	6.81 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	13.5 AWG

Part	Wire Gauge	Jacket (Insulation) Material	Usage	Conductor Insulation	Voltage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length
ALPHA WIRE 1891C SL005	13.5 AWG	Poly-Vinyl Chloride (PVC)	Communication Control	Poly-Vinyl Chloride (PVC)	300 V	Slate	0.268 in	6.81 mm	30.5 m	100 ft	41	30 AWG	2	Multi-Conductor	-20 C	80 C	Copper Tinned	0.02 in	0.508 mm
ALPHA WIRE 1891C SL001	13.5 AWG	Poly-Vinyl Chloride (PVC)	Communication Control	Poly-Vinyl Chloride (PVC)	300 V	Slate	0.268 in	6.81 mm			41	30 AWG	2	Multi-Conductor	-20 C	80 C	Copper Tinned	0.02 in	0.508 mm	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1423.92
