T0052918999N

Active

Apex Tool Group

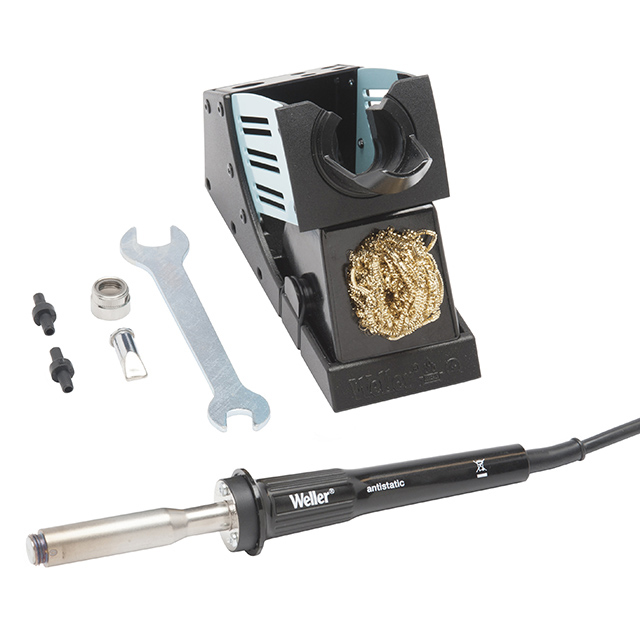

SOLDERING IRON 150W

Search across all available documentation for this part.

Active

Apex Tool Group

SOLDERING IRON 150W

Technical Specifications

Parameters and characteristics for this part

Specification	T0052918999N

Features	ESD Safe
For Use With/Related Products	WD"M, WD2
Includes	Wrench
Power (Watts)	150 W
Tip Diameter [diameter]	9.3 mm
Tip Diameter [diameter]	0.37 in
Tip Temperature [Max]	950 °F
Tip Temperature [Max]	500 °C
Tip Temperature [Min]	100 °C
Tip Temperature [Min]	200 °F
Tip Type	LHTF
Type	Iron
Workstand	WDH30

Part	Workstand	Tip Type	For Use With/Related Products	Tip Temperature [Min]	Tip Temperature [Max]	Tip Temperature [Max]	Tip Temperature [Min]	Features	Power (Watts)	Type	Tip Diameter [diameter]	Tip Diameter [diameter]	Includes	Tip Temperature	Voltage - Input	Accessory Type
Apex Tool Group T0052918999N	WDH30	LHTF	WD"M WD2	100 °C	950 °F	500 °C	200 °F	ESD Safe	150 W	Iron	9.3 mm	0.37 in	Wrench
Apex Tool Group T0052918199N	WDH10	LTB (Chisel)	WD1 WD2 WR Series		850 °F		200 °F	ESD Safe	80 W	Iron				100 °C 450 °C	24 V
Apex Tool Group T0052918099N		LTB (Chisel)	WD1 WD2 Series		850 °F		200 °F	ESD Safe	80 W	Iron				100 °C 450 °C	24 V
Apex Tool Group T0052918599N																Attachment with Tube

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 374.00

General part information

Iron 150W

Technical documentation and resources
