OSTOQ085451

Active

On Shore Technology Inc.

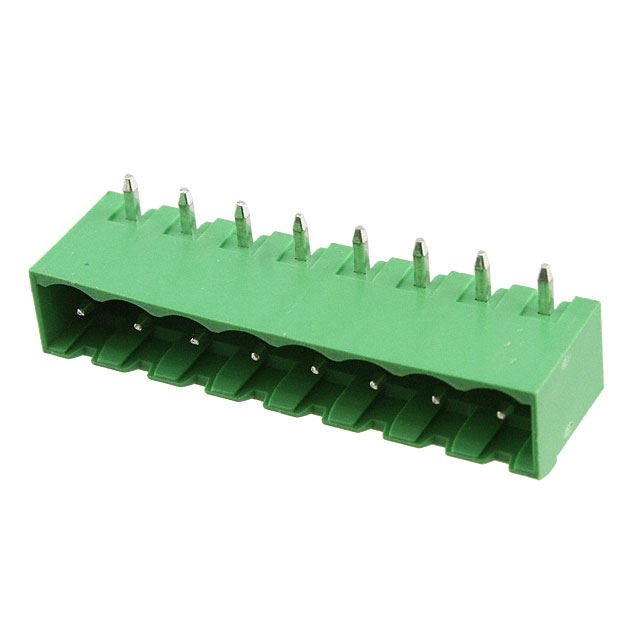

TERM BLOCK HDR 8POS 90DEG 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTOQ085451

Active

On Shore Technology Inc.

TERM BLOCK HDR 8POS 90DEG 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTOQ085451

Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Mounting Type	Solder
Number of Levels	1
Number of Positions	8
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	8
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

OSTOQ08 Series

Part	Positions Per Level	Number of Levels	Material Flammability Rating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insulation Height	Insulation Height	Voltage - UL	Header Orientation	Contact Tail Length	Contact Tail Length	Type	Contact Mating Finish	Housing Material	Pitch [x]	Pitch [x]	Contact Material	Mounting Type	Insulation Height [custom]	Insulation Height [custom]	Termination Style
On Shore Technology Inc. OSTOQ083551	8	1	UL94 V-0	8	-30 ░C	105 ░C	Mating Flange	3.5 mm	0.138 in	300 V	90° Right Angle	3.5 mm	0.138 in	Header Male Pins Shrouded (4 Side)	Tin	Thermoplastic	0.15 in	3.81 mm	Brass	Solder
On Shore Technology Inc. OSTOQ085400	8	1		8	-30 ░C	105 ░C		12 mm	0.472 in	300 V	Vertical	4 mm	0.157 in	Header Male Pins Shrouded (4 Side)	Tin	Thermoplastic	0.2 in	5.08 mm	Brass	Solder
On Shore Technology Inc. OSTOQ08A151	8	1		8	-30 ░C	105 ░C				300 V	90° Right Angle	4 mm	0.157 in	Header Male Pins Shrouded (4 Side)	Tin	Thermoplastic	0.295 in	7.5 mm	Brass	Solder	0.157 in	4 mm
On Shore Technology Inc. OSTOQ085350	8	1		8	-30 ░C	105 ░C				300 V	Vertical	4 mm	0.157 in	Header Male Pins Shrouded (2 Side)	Tin	Thermoplastic	0.2 in	5.08 mm	Brass	Solder	0.157 in	4 mm
On Shore Technology Inc. OSTOQ085451	8	1		8	-40 °C	115 °C				300 V	90° Right Angle	4 mm	0.157 in	Header Male Pins Shrouded (4 Side)	Tin	Thermoplastic	0.2 in	5.08 mm		Solder	0.157 in	4 mm
On Shore Technology Inc. OSTOQ08B151	8	1		8	-30 ░C	105 ░C		3.81 mm	0.15 in	125 V	90° Right Angle	3.81 mm	0.15 in	Header Male Pins Shrouded (4 Side)	Tin	Thermoplastic	0.098 in	2.5 mm	Brass	Through Hole			Solder
On Shore Technology Inc. OSTOQ080050	8	1		8	-30 ░C	105 ░C				300 V	Vertical	4 mm	0.157 in	Header Male Pins Shrouded (2 Side)	Tin	Thermoplastic	0.3 in	7.62 mm	Brass	Solder	0.157 in	4 mm
On Shore Technology Inc. OSTOQ087551	8	1	UL94 V-0	8	-30 ░C	105 ░C	Mating Flange			300 V	90° Right Angle	4 mm	0.157 in	Header Male Pins Shrouded (4 Side)	Tin	Thermoplastic	0.197 in	5 mm	Brass	Solder	0.157 in	4 mm
On Shore Technology Inc. OSTOQ08A550	8	1	UL94 V-0	8	-30 ░C	105 ░C	Mating Flange			300 V	Vertical	4 mm	0.157 in	Header Male Pins Shrouded (4 Side)	Tin	Thermoplastic	0.295 in	7.5 mm	Brass	Solder	0.157 in	4 mm
On Shore Technology Inc. OSTOQ080051	8	1		8	-30 ░C	105 ░C				300 V	90° Right Angle	4 mm	0.157 in	Header Male Pins Shrouded (2 Side)	Tin	Thermoplastic	0.3 in	7.62 mm	Brass	Solder	0.157 in	4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.53
		10	$ 0.85
		25	$ 0.71
		50	$ 0.64
		100	$ 0.59
		250	$ 0.53
		500	$ 0.51
		1000	$ 0.49
		5000	$ 0.45

Description

General part information

OSTOQ08 Series

8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Solder
